Bar Grating Clips & Fasteners Overview
Bar grating clips and fasteners are used to secure grating panels to supporting steelwork while allowing the finished installation to remain stable and properly positioned.
Mechanical fasteners are particularly useful when grating panels need to remain removable for inspection or maintenance, or where field welding is not practical. Different clip designs are available for different bearing-bar spacing, grating heights and supporting structures.
Because grating clips are not universal, the correct fastener should be selected according to the actual grating specification and installation detail rather than panel size alone.
Bar Grating Clip & Fastener Types

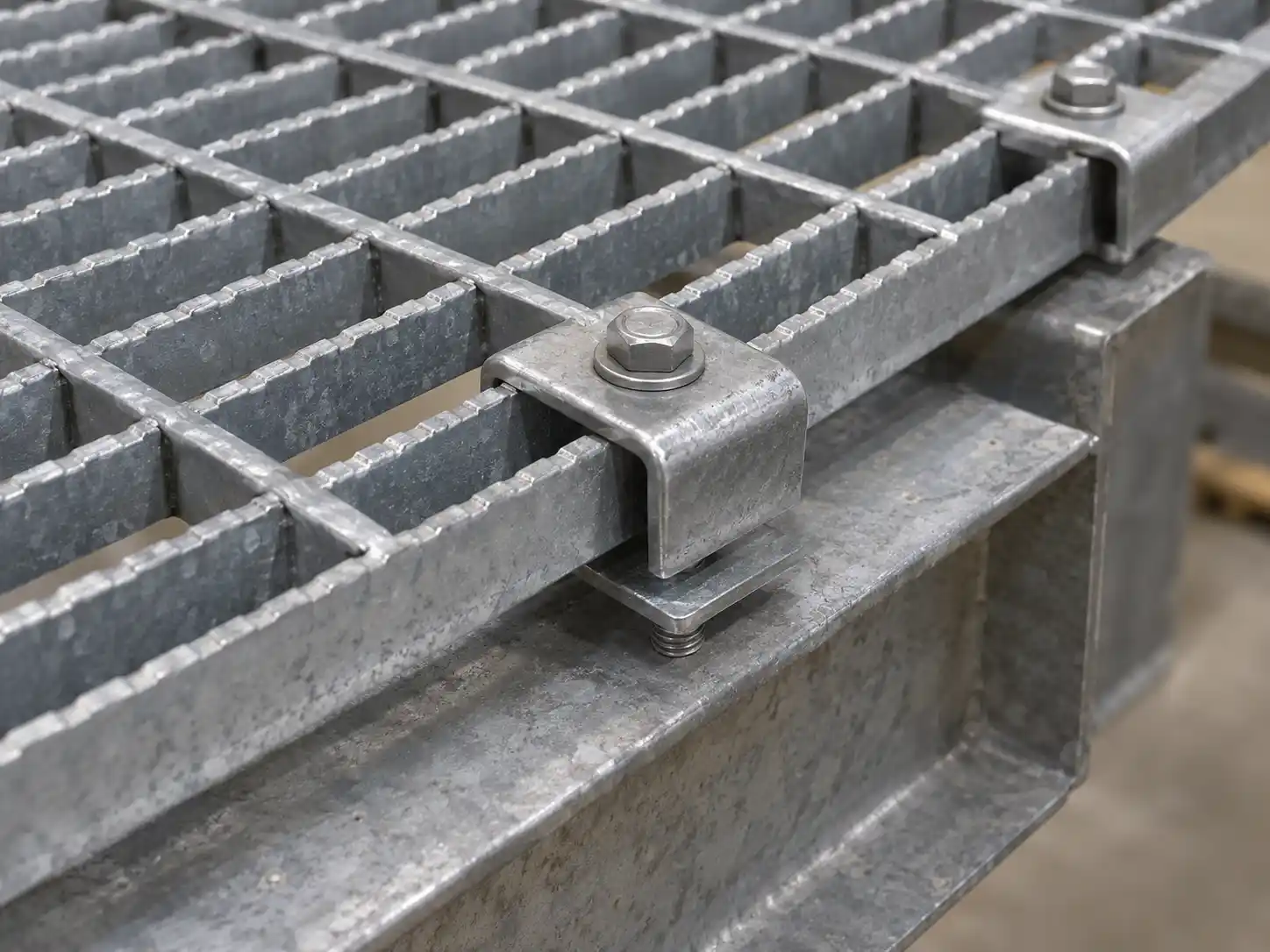

Saddle Clips
Secure bar grating panels with a simple bolted connection to the supporting structure.

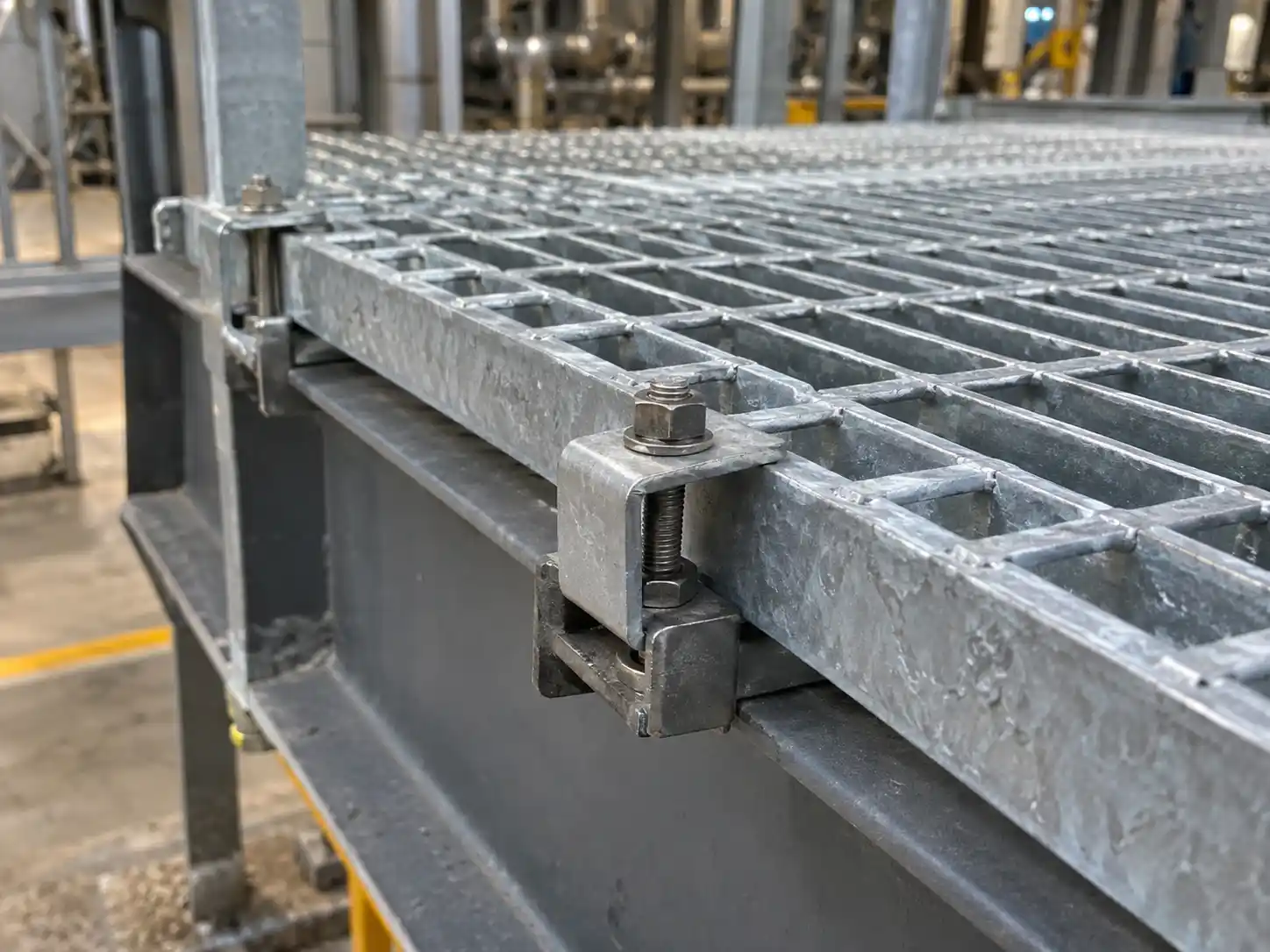

Grating Clamps
Mechanically clamp grating to supports without permanent welding.

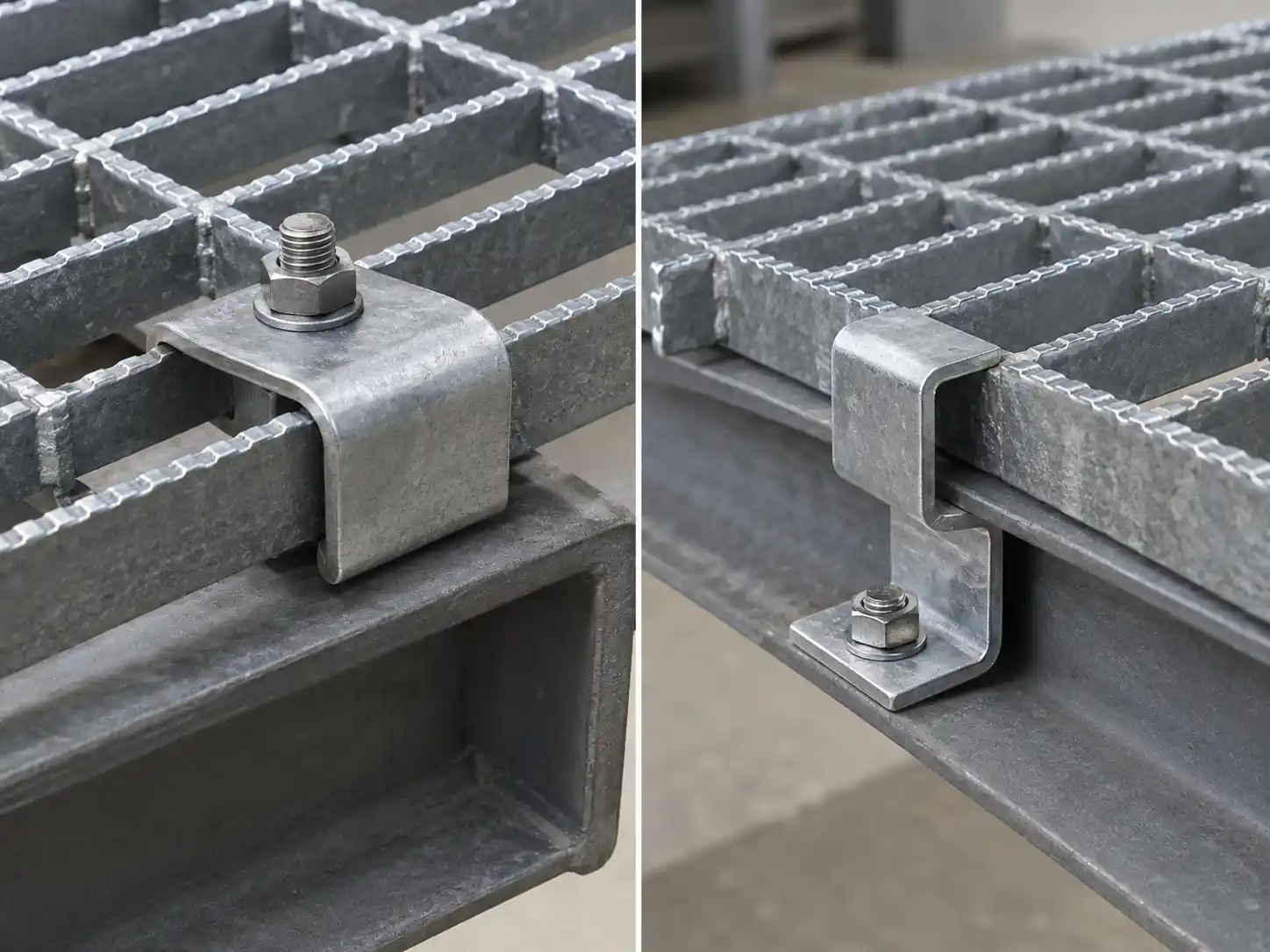

Hold-Down & Z Clips
Hold grating panels firmly in position while allowing removable installation.

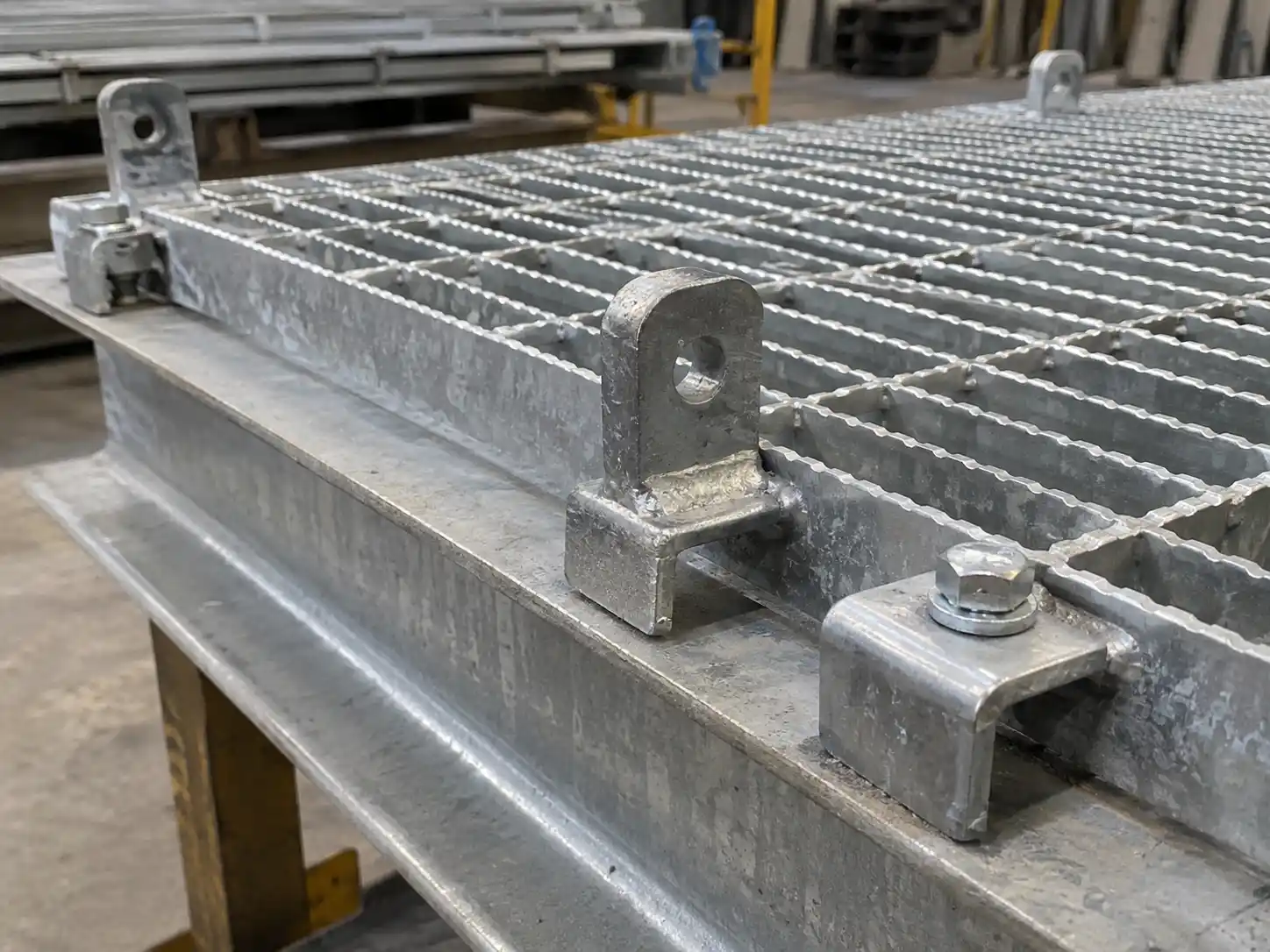

Weld Lugs & Anchor Blocks
Provide integrated attachment points for bolting grating panels to structural supports.
Bar Grating Fastener Specifications
The correct fastener depends on the grating geometry, supporting structure and required installation method.
| Specification | Available Options | Selection Notes |
|---|---|---|
| Fastener Type | Saddle clip, grating clamp, hold-down clip, anchor device | Select according to installation |
| Grating Construction | Welded, press-locked, swage-locked and selected other constructions | Verify compatibility |
| Bearing Bar Spacing | According to grating specification | Critical for clip fit |
| Bearing Bar Height | According to grating specification | Important for hold-down and clamp selection |
| Bearing Bar Thickness | According to selected grating | Influences clip engagement |
| Support Type | Beam, angle, channel, frame or project-specific support | Confirm installation detail |
| Support Flange Thickness | According to structure | Important for clamp-style fasteners |
| Clip Material | Galvanized steel, stainless steel, aluminum | Match environment and grating |
| Bolt / Screw | According to fastener design | Confirm diameter, length and thread |
| Installation Access | Top access, top and underside access | Influences fastener choice |
| Panel Removal | Removable or permanent installation | Determines attachment method |
| Quantity | According to panel layout | Confirm fastening locations |
| Packaging | Loose, sets or project-labeled kits | According to ordering requirement |

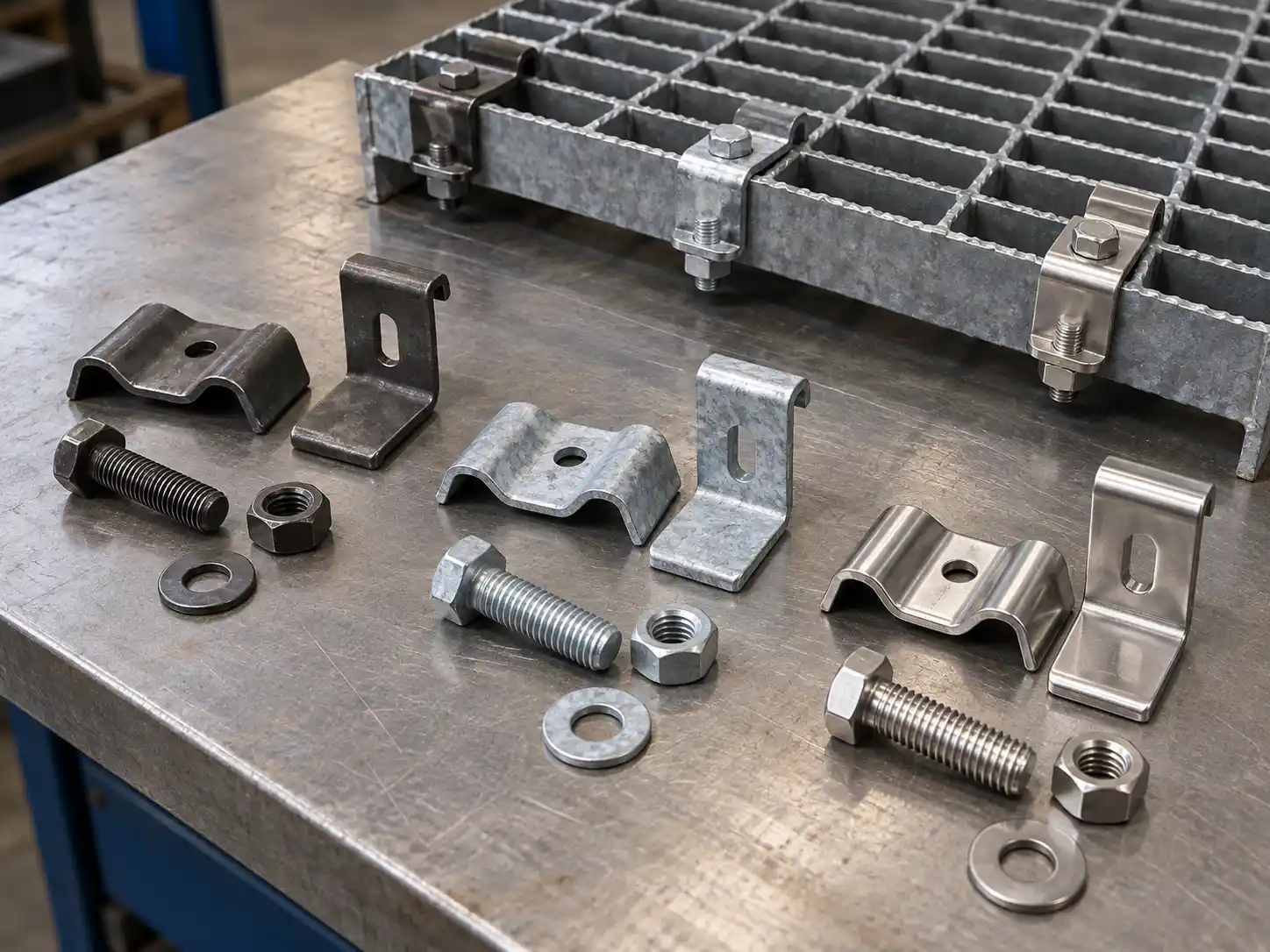

Bar Grating Clip Materials & Finishes
Galvanized Steel
A practical fastening option for carbon steel and galvanized grating in outdoor and general industrial environments.
Galvanized Steel
Zinc-protected grating for outdoor and moisture-exposed environments.
Stainless Steel
Corrosion-resistant grating for processing, architectural and demanding service environments.
Compatible Bar Grating

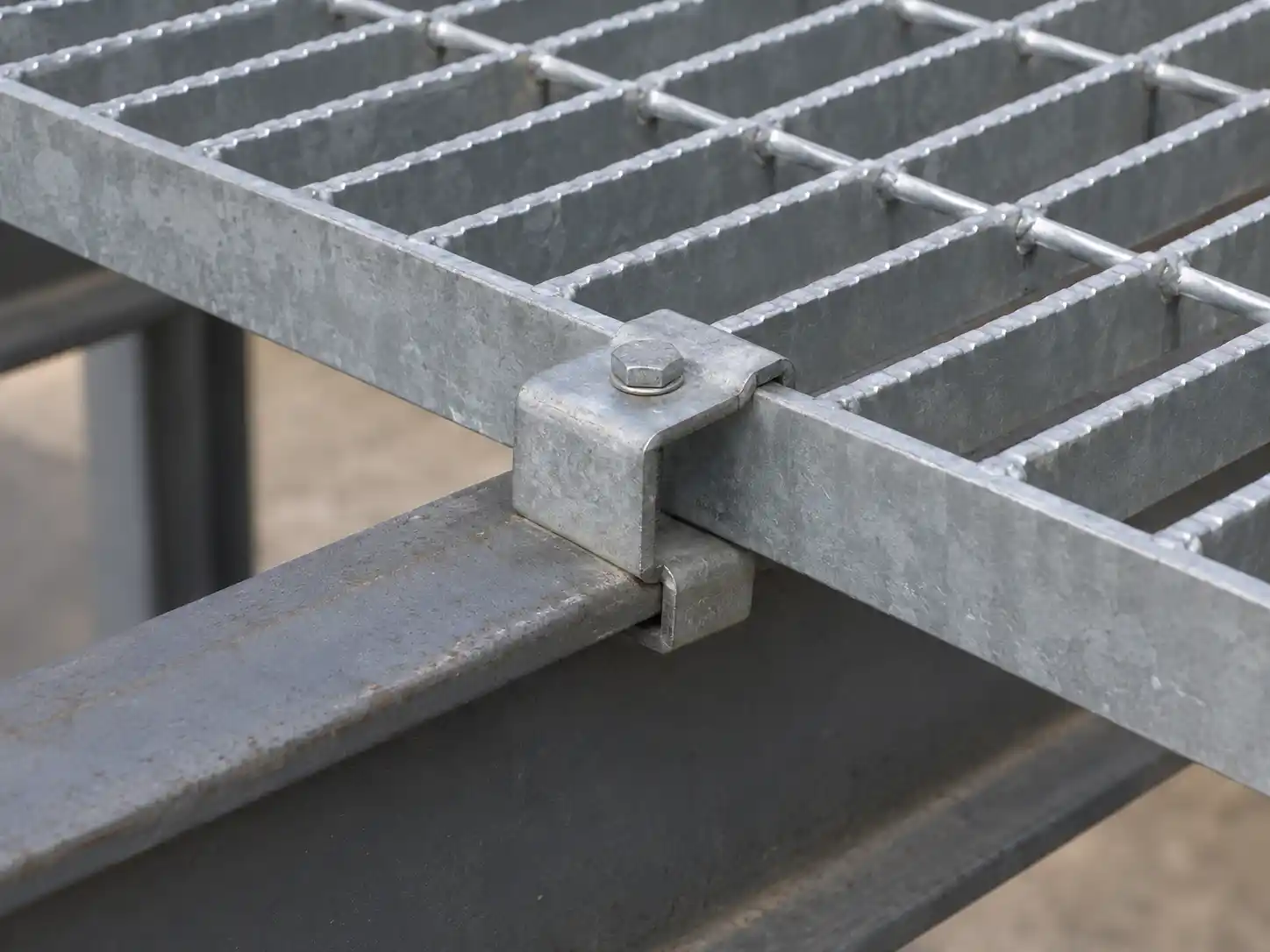

Welded Bar Grating
Saddle clips, grating clamps and other mechanical fastening systems are commonly used with welded grating when removable installation is required.
Press-Locked Bar Grating
Fasteners can be selected according to the bearing-bar spacing, grating depth and support arrangement of the press-locked panel.

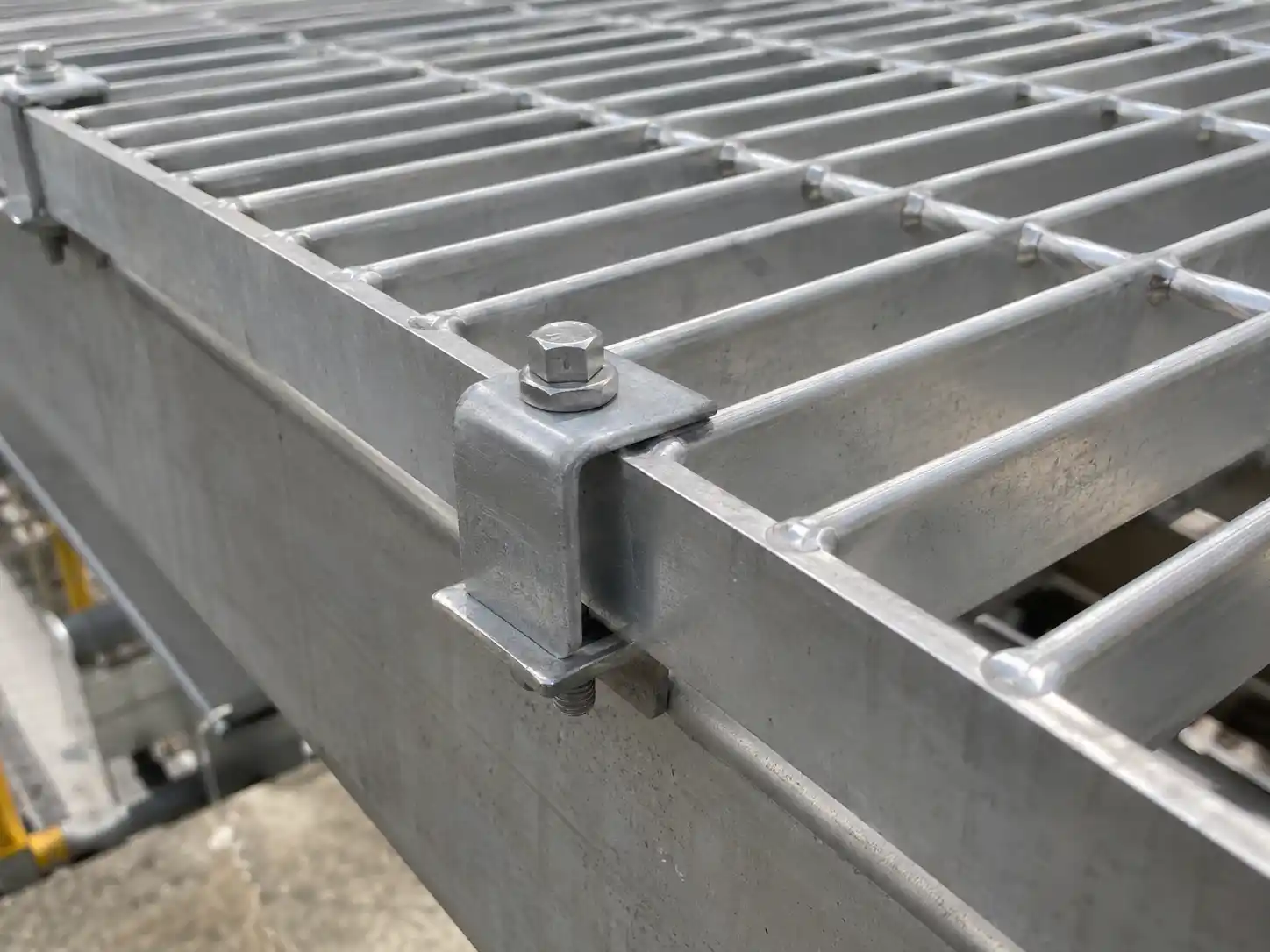

Swage-Locked Bar Grating
Suitable clips and fasteners can be matched to aluminum swage-locked grating according to the selected bar profile and support structure.

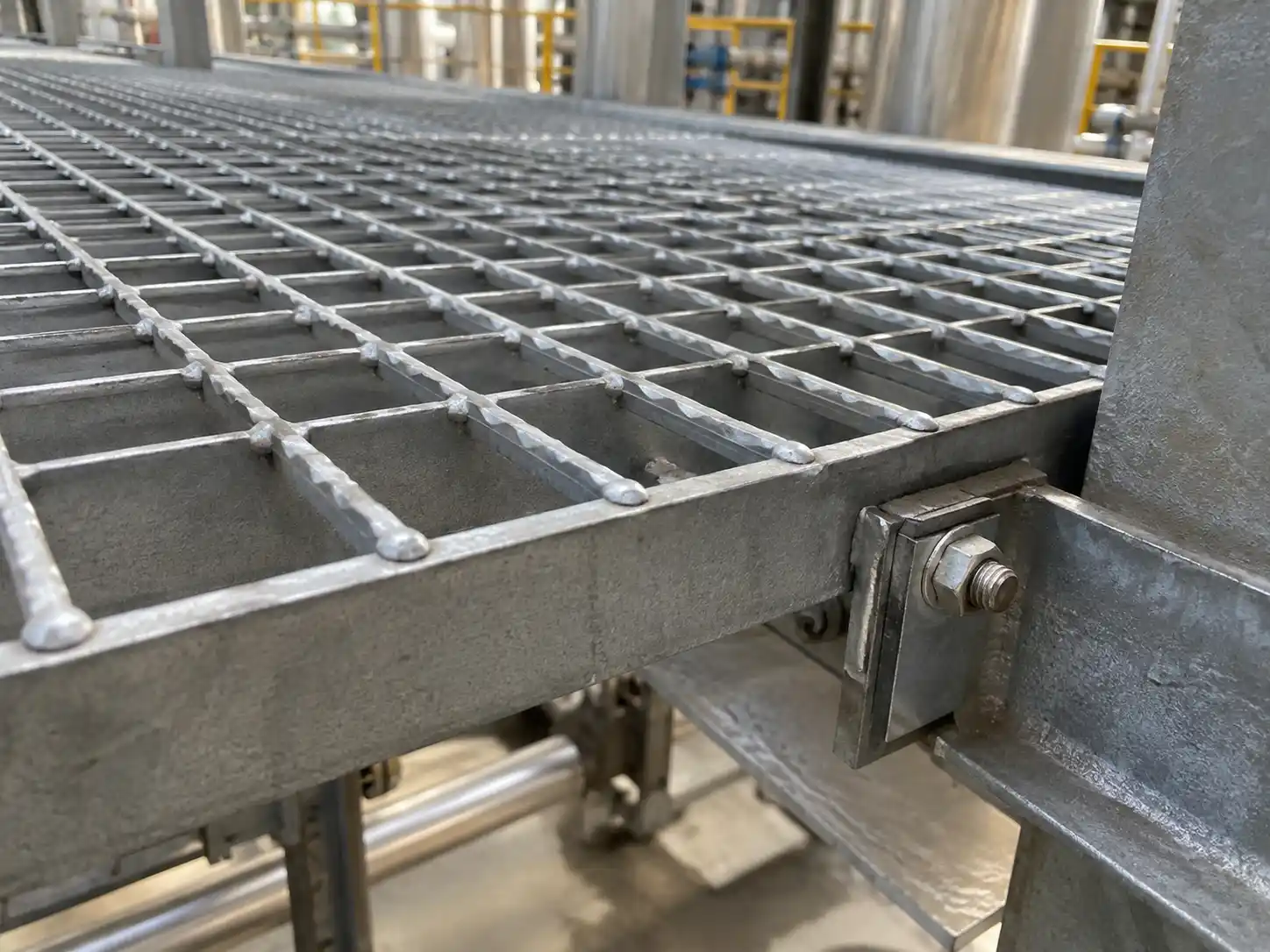

Riveted Bar Grating
Hold-down and Z-style anchoring systems can be used for selected riveted grating installations where the clip matches the grating depth and support detail.
Close-Mesh Grating Fastening
Close-mesh grating may require different fastening details because the reduced bearing-bar spacing leaves less room for conventional clips.
Depending on the grating construction, fastening options can include narrow clips, recessed or countersunk attachment points and self-drilling fasteners.
The selected detail should be checked against the actual bearing-bar spacing, bar thickness and supporting structure. Industry manufacturers specifically use countersunk or counter-bored attachment details for some close-mesh systems.
How to Choose Bar Grating Clips
The fastener should be matched to both the grating panel and the supporting structure.
Grating Size & Spacing
Match the clip to the bearing bar spacing, grating height and bar thickness.
Support Structure
Confirm whether the grating is fixed to beams, angles, channels or other support profiles.
Installation Access
Choose the fastener according to whether installation is possible from above only or from both sides.
Removal & Environment
Consider whether panels must remain removable and select a material suitable for the service environment.
Project-Based Bar Grating Fastener Supply
Fastener Matching
Fasteners can be matched to the grating spacing, bearing-bar height and supporting structure.
Hardware Sets
Clips, bolts, nuts, washers or specified matching hardware can be prepared as project sets when required.
Panel-Based Quantities
Fastener quantities can be prepared according to the grating panel layout and specified attachment locations.
Project Identification
Different fastener sizes or installation areas can be labeled separately to simplify onsite installation.
Why Choose Us as Your Bar Grating Fastener Supplier?
We can supply grating panels and compatible fastening components as part of the same project package, reducing uncertainty during installation preparation.
Grating & Fastener Matching
Fastener selection can be coordinated with the actual grating specification instead of treating clips as independent hardware.
Multiple Fastener Options
Different mechanical fastening and anchoring solutions can be selected according to panel and support conditions.
Project Quantity Supply
Fasteners can be supplied according to panel quantities and installation requirements.
Organized Packaging
Clips and hardware can be grouped and labeled according to panel type or installation area.
For quotation, send us the grating type, bearing bar size and spacing, grating height, support detail, flange thickness, installation access, quantity and preferred fastening method.
Mechanical Fasteners vs. Welded Attachment
| Comparison | Mechanical Grating Fasteners | Welded Attachment |
|---|---|---|
| Panel Removal | Easy to design as removable | Normally permanent |
| Field Welding | Not required for many systems | Required |
| Maintenance Access | Suitable for removable panels | Less convenient |
| Installation Access | Depends on clip design | Requires welding access |
| Fastener Selection | Must match grating and support | Weld detail must match structure |
| Typical Use | Maintenance panels, access areas | Permanent grating installations |
Use mechanical clips and fasteners where panels need to remain removable or field welding is undesirable.
Use welded attachment where a permanent installation is required and the project specification permits welding.
Case Study : Top-Access Grating Fasteners for a Rooftop Mechanical Platform
Project Requirement
A mechanical equipment contractor required removable galvanized welded grating panels for an elevated rooftop service platform.
Several panels needed to be removed periodically for access to equipment below the platform, and field welding was not preferred during final installation.
The fasteners therefore needed to secure the panels while allowing future removal from the walking surface.
Fastening Solution
The grating specification, bearing-bar spacing and supporting flange dimensions were reviewed together with the platform layout.
A suitable top-access mechanical fastening arrangement was selected for the removable panels.
Fastener quantities were prepared according to panel locations, with separate hardware sets for special edge panels and access sections.
Identification & Packaging
Clips and matching hardware were checked by type and quantity before shipment.
Fastener sets were labeled according to their platform locations and packed together with the corresponding grating panel groups.
Bar Grating Clips & Fasteners FAQs
Bar grating clips are mechanical fastening components used to secure grating panels to supporting structures.
Mechanical fasteners are useful where panels must remain removable or where field welding is not practical.
No. Clip compatibility depends on bearing-bar spacing, grating height, support dimensions and the fastener design.
A saddle clip is a bent fastening component that bridges adjacent bearing bars and is secured to the supporting structure with suitable hardware.
Selected grating clamp or G-style systems can be installed from the top of the grating without conventional drilling or welding.
Common clip materials include galvanized steel, stainless steel and aluminum.
Not always. Reduced bearing-bar spacing may require narrow clips, countersunk attachment details or other fastening solutions.
Not necessarily. Heavy-duty or traffic-related installations should use fastening details appropriate to the actual grating, support and load conditions.
Yes. Matching fastening components can be prepared together with the grating order according to project requirements.
Provide the grating construction, bearing-bar spacing and height, support detail, flange thickness, installation access and required quantity.
