Woven Wire Mesh Overview
Woven wire mesh is produced by interlacing longitudinal and transverse metal wires to create controlled openings in a flexible mesh structure.
A wide range of apertures, wire diameters, mesh counts and weave patterns can be produced for filtration, screening, separation and architectural applications.
Woven Wire Mesh Weave Types
The weave structure affects aperture stability, wire arrangement and filtration performance.

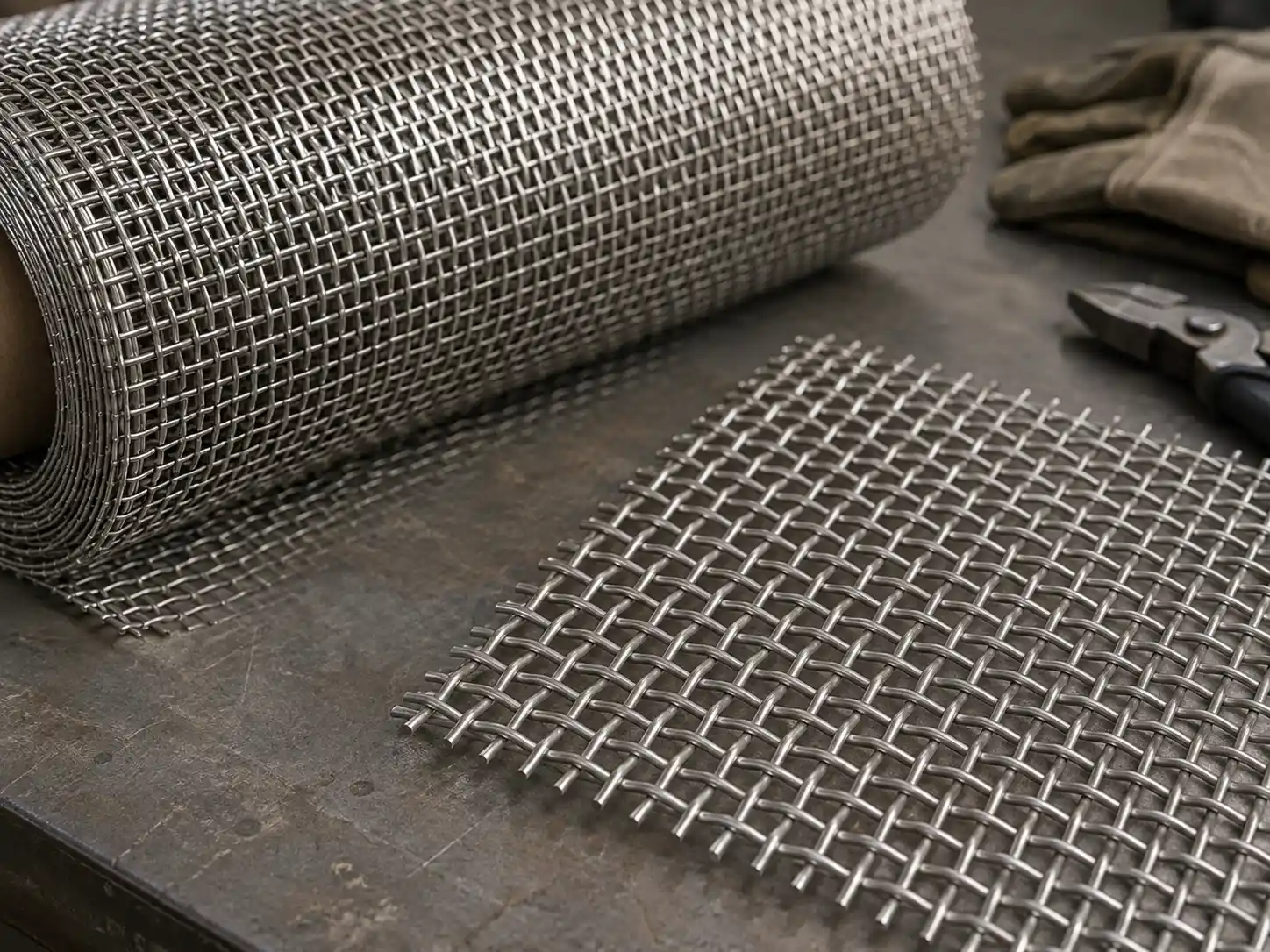

Plain Weave
Each wire passes alternately over and under the adjacent wire, creating a regular square-opening structure.

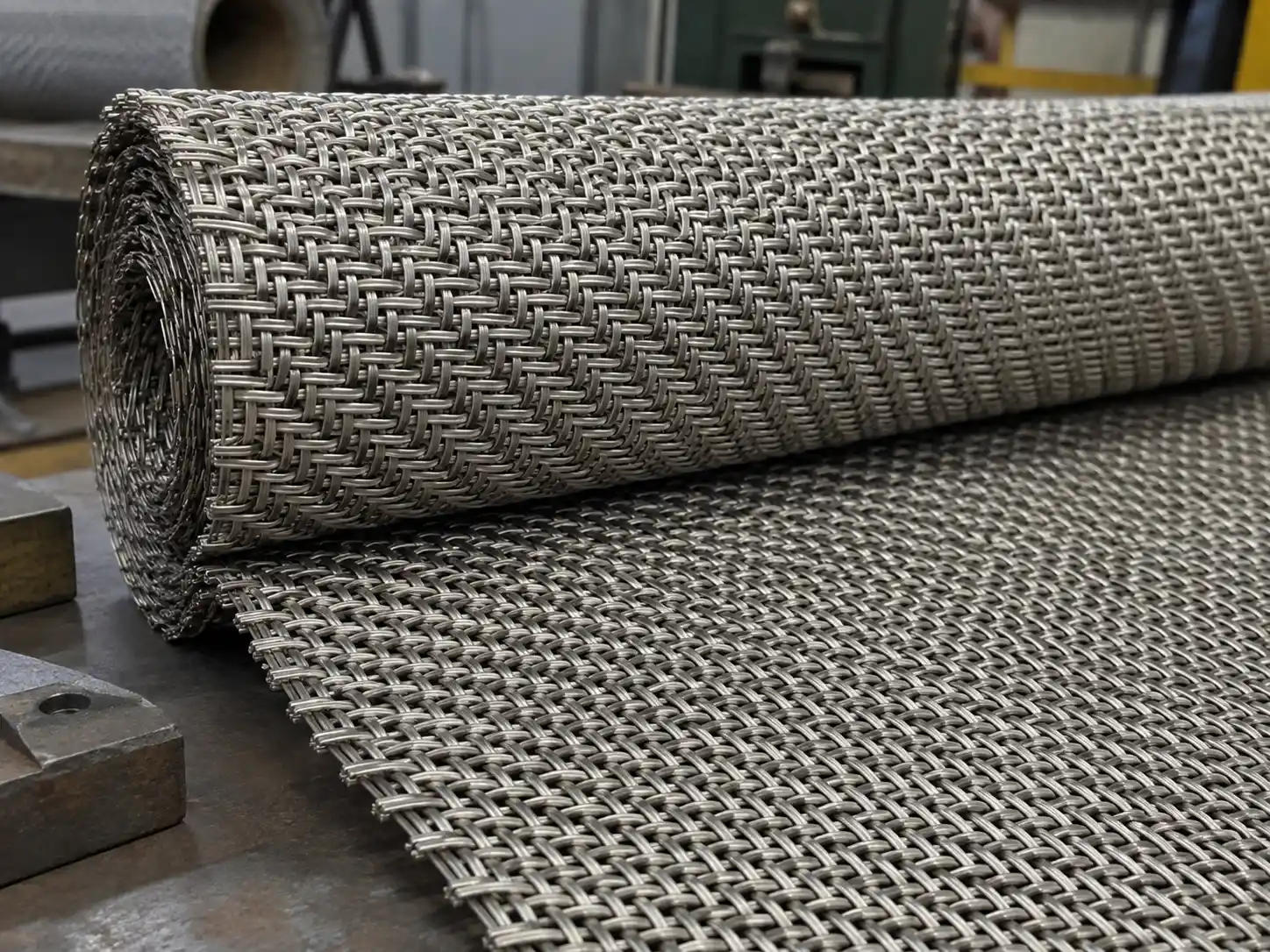

Twill Weave
Wires pass over and under multiple adjacent wires, allowing tighter weaving and different wire-to-aperture combinations.

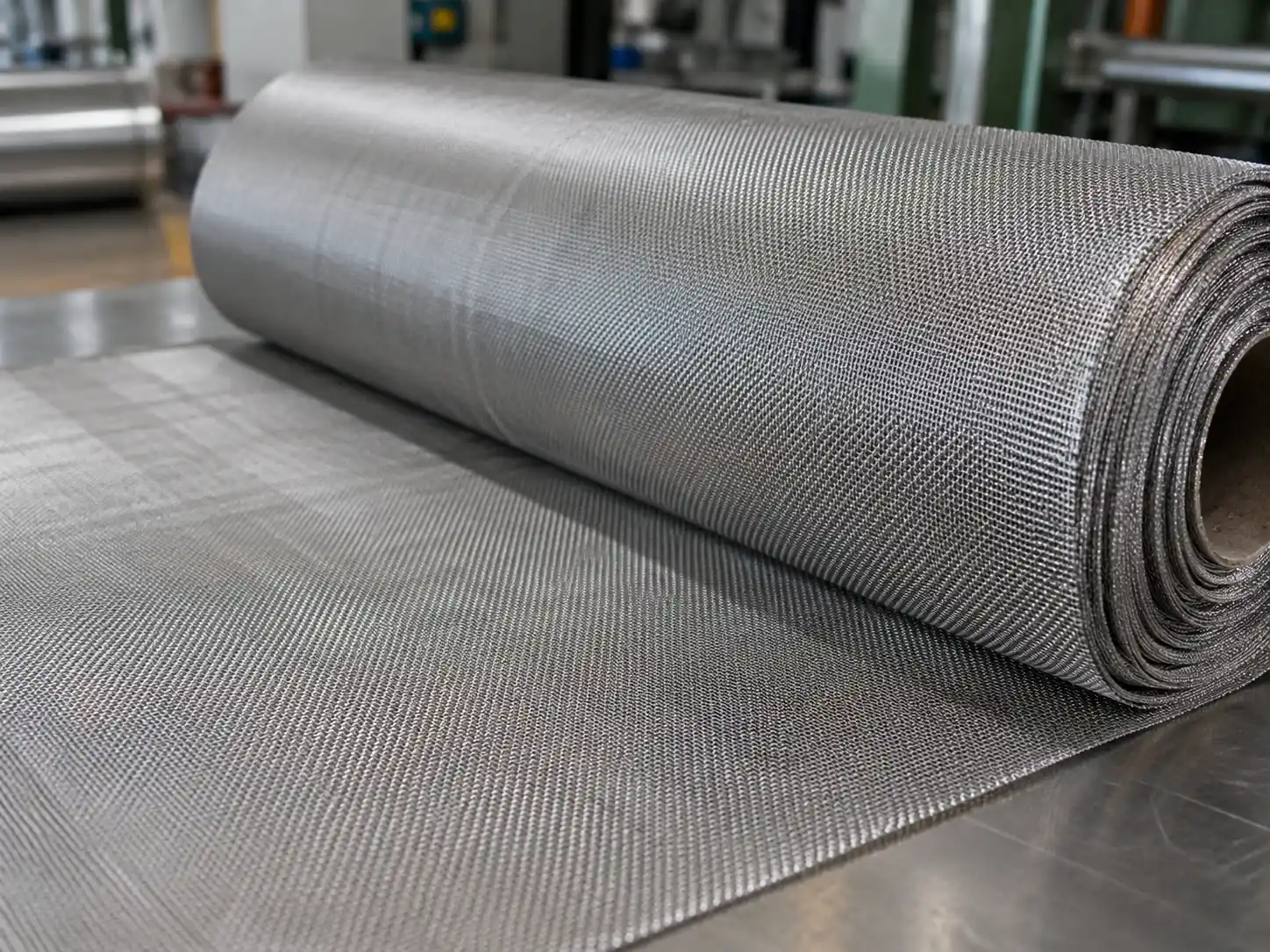

Dutch Weave
A dense woven structure designed for fine filtration and high particle-retention requirements.
Woven Wire Mesh Specifications
Specify woven wire mesh by weave type, wire diameter, aperture, mesh count and finished dimensions.
| Specification | Available Options | Selection Notes |
|---|---|---|
| Weave Type | Plain, twill, Dutch and available custom structures | Affects opening and filtration characteristics |
| Wire Diameter | According to mesh specification | Influences strength, flexibility and open area |
| Aperture / Opening | Fine to coarse openings | Determines screening and filtration performance |
| Mesh Count | According to woven mesh specification | Commonly used for finer mesh |
| Open Area | Depends on aperture and wire diameter | Influences flow and transparency |
| Material | Stainless steel, carbon steel, galvanized steel, copper and other available metals | Select according to environment |
| Width & Length | Standard or custom | According to finished requirements |
| Edge Condition | Raw, trimmed, cut or prepared | Depends on further fabrication |
| Tolerance | According to aperture, wire and dimensions | Identify critical requirements before production |
Woven Wire Mesh Materials
Choose the material according to corrosion resistance, operating conditions and required performance.
Stainless Steel Wire Mesh
Corrosion-resistant welded mesh for industrial, processing and exposed environments.
Carbon Steel Wire Mesh
Strong and economical welded mesh for guards, panels and fabricated components.
Galvanized Wire Mesh
Zinc-protected welded mesh for outdoor and corrosion-exposed applications.
PVC-Coated Wire Mesh
Coated welded mesh for applications requiring additional surface protection and a finished appearance.
Woven Wire Mesh Applications
Controlled openings and flexible construction make woven mesh suitable for screening, filtration and architectural applications.
Wire Mesh Filtration & Separation
Industrial Screening & Sieving
Wire Mesh Railings & Infill Panels
Decorative & Architectural Metal Mesh
Woven Wire Mesh Manufacturing & Fabrication
Woven mesh can be processed into custom sizes and fabricated components according to project drawings.
Cutting & Sizing
Mesh can be cut to required widths, lengths and finished dimensions.
Edge Preparation
Edges can be trimmed, folded or prepared for further assembly.
Framing
Mesh can be installed into fabricated frames for rigid screen assemblies.
Custom Components
Woven mesh can be formed and processed into project-specific screening and filtration components.
Send Us Your Woven Wire Mesh Requirements
Send the main specification and finished dimensions so we can confirm production and quotation.
Mesh Specification
Provide the weave type, wire diameter, aperture or mesh count.
Material & Quantity
Specify the required material and order quantity.
Finished Dimensions
Provide the required width, length or cut size.
Fabrication Requirements
Specify edge preparation, framing, forming and any critical tolerances.
Woven Wire Mesh vs. Welded Wire Mesh
Woven and welded mesh differ mainly in flexibility, opening range and panel rigidity.
| Comparison | Woven Wire Mesh | Welded Wire Mesh |
|---|---|---|
| Construction | Interlaced wires | Welded intersections |
| Flexibility | Higher | Lower |
| Fine Openings | Better suited | More limited |
| Panel Rigidity | Usually lower | Higher |
| Typical Use | Filtration & screening | Guards & enclosures |
Woven Wire Mesh is preferred for finer openings and filtration, while Welded Wire Mesh is better suited to rigid panels.
Case Study:Custom Woven Wire Mesh for Food Processing Screens
A food-processing equipment manufacturer required corrosion-resistant woven mesh with controlled apertures for replaceable screening components.
Project Requirement
Several screen sizes were required with consistent openings and finished dimensions for installation into existing equipment.
Manufacturing Solution
Stainless steel woven wire mesh was produced according to the specified wire diameter and aperture, then cut to finished dimensions with consistent weave orientation.

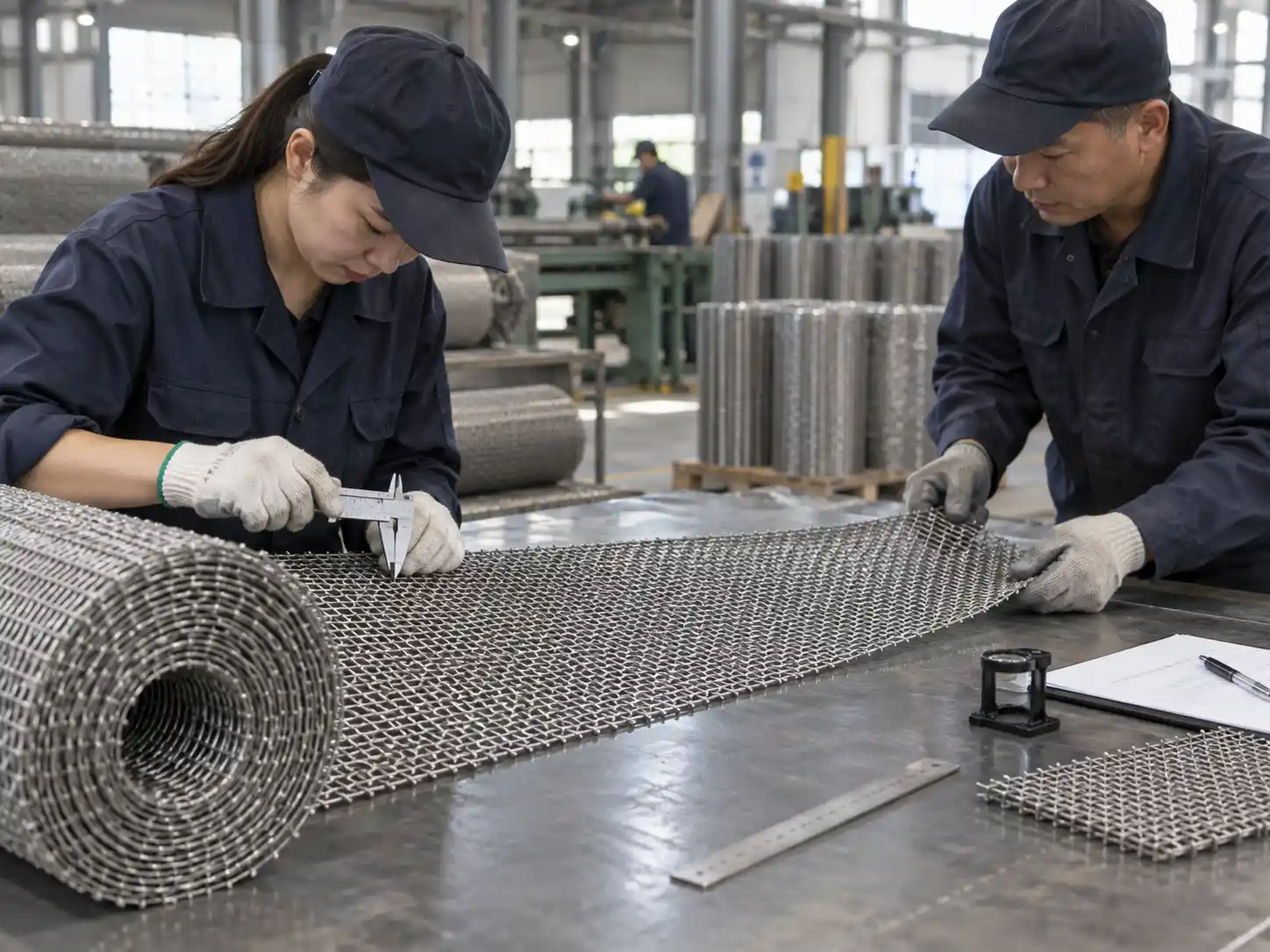

Inspection & Packaging
Wire diameter, aperture, dimensions and edge condition were checked before shipment. Different screen sizes were identified and packed separately.
Woven Wire Mesh FAQs
Yes. Aperture, wire diameter and weave structure can be produced according to suitable manufacturing specifications.
For the same mesh pattern, changing the opening or wire diameter changes the percentage of open surface.
Yes, but the suitable temperature depends primarily on the selected wire material and operating environment.
Yes. Critical aperture and dimensional requirements should be identified before production for feasibility confirmation.
Yes. Mesh can be cut and installed into fabricated frames according to drawings.
Provide finished dimensions, mesh specification, frame or edge details, mounting information and any critical tolerances.
