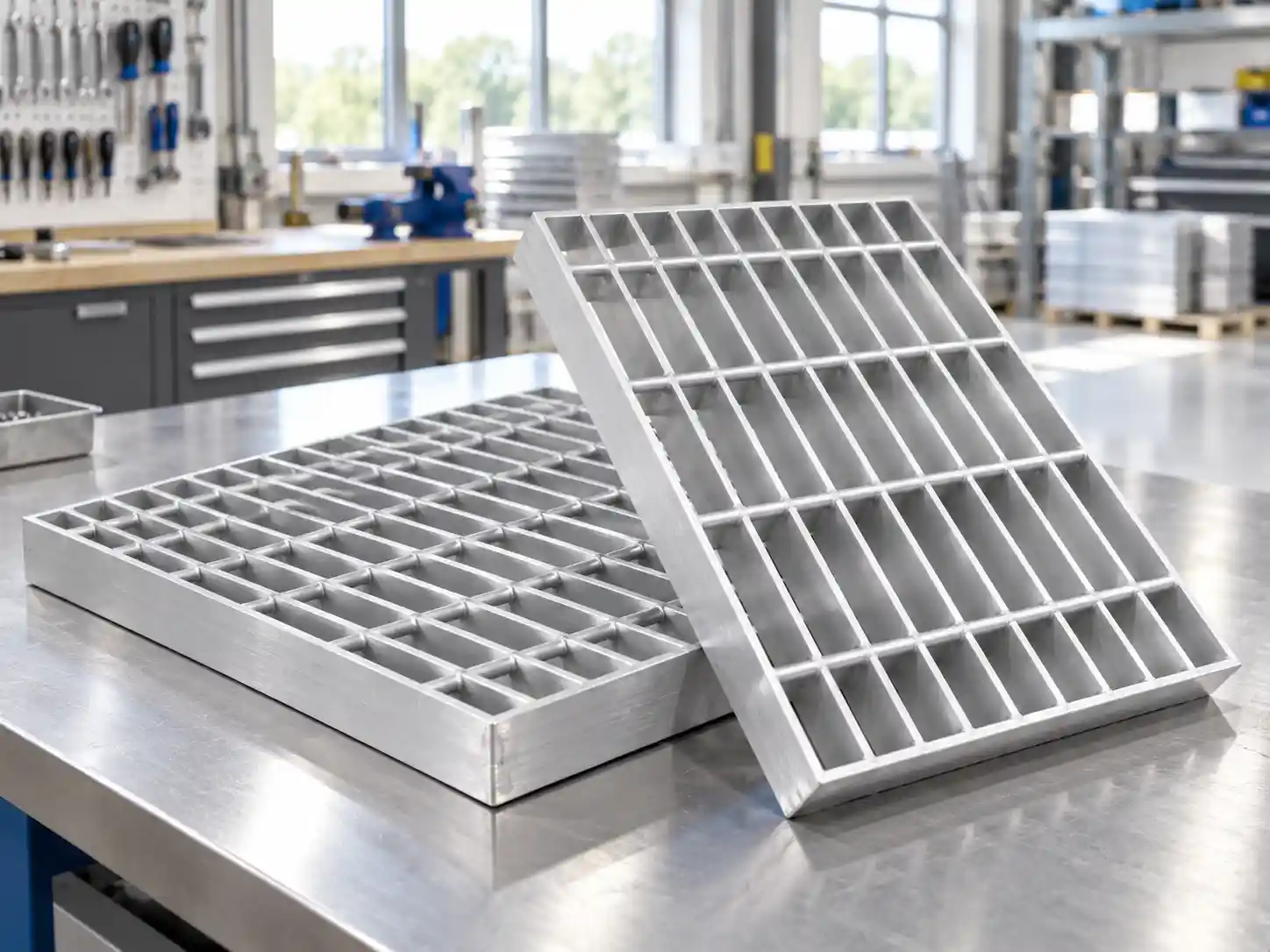

Swage-Locked Bar Grating Overview
Swage-locked bar grating is produced by mechanically locking cross bars into bearing bars through a swaging process, creating a rigid open-grid panel without relying on the conventional welded construction.
This construction is especially common in aluminum grating, providing a useful combination of low weight, open area and structural stability for platforms, walkways and fabricated access systems.
Depending on the specification, swage-locked grating can use rectangular or I-shaped bearing bars with smooth, grooved or serrated walking surfaces.
Swage-Locked Bar Grating Specifications
Swage-locked grating is mainly selected by bearing bar shape, size, spacing, surface, span and finished panel dimensions.
| Specification | Available Options | Selection Notes |
|---|---|---|
| Construction | Swage-locked | Cross bars mechanically locked into bearing bars |
| Primary Material | Aluminum | Common material for swage-locked construction |
| Bearing Bar Shape | Rectangular bar, I-bar and available profiles | Affects weight and structural performance |
| Bearing Bar Height | According to grating specification | Important for load capacity |
| Bearing Bar Thickness | According to selected profile | Consider together with span and spacing |
| Bearing Bar Spacing | According to grating series | Influences open area and walking surface |
| Cross Bar Spacing | According to grating specification | Defines transverse support spacing |
| Surface | Smooth, grooved or serrated | Select according to traction requirements |
| Panel Size | Standard or custom | Confirm finished width and length |
| Bearing Bar Direction | Runs in span direction | Must align with supporting structure |
| Clear Span | According to project layout | Critical for load selection |
| Load Requirement | According to project design | Verify using suitable load data |
| Edge Condition | Open or banded | Depends on finished installation |
| Fabrication | Cutting, banding, notching and cut-outs | According to drawings |
Commercial swage-locked aluminum grating is available in rectangular-bar and I-bar configurations, with both smooth and serrated/grooved surfaces depending on the selected series.
Swage-Locked Bar Grating Materials
Aluminum
Lightweight and corrosion-resistant aluminum is the primary material for swage-locked bar grating and is well suited to exposed and weight-sensitive applications.
Swage-Locked Bar Grating Applications
Its lightweight aluminum construction makes swage-locked grating suitable for open flooring and access systems where reduced weight and corrosion resistance are important.
Metal Grating Platforms & Walkways
Industrial Bar Grating Flooring
Metal Grating Stair Treads
Trench & Drain Grating

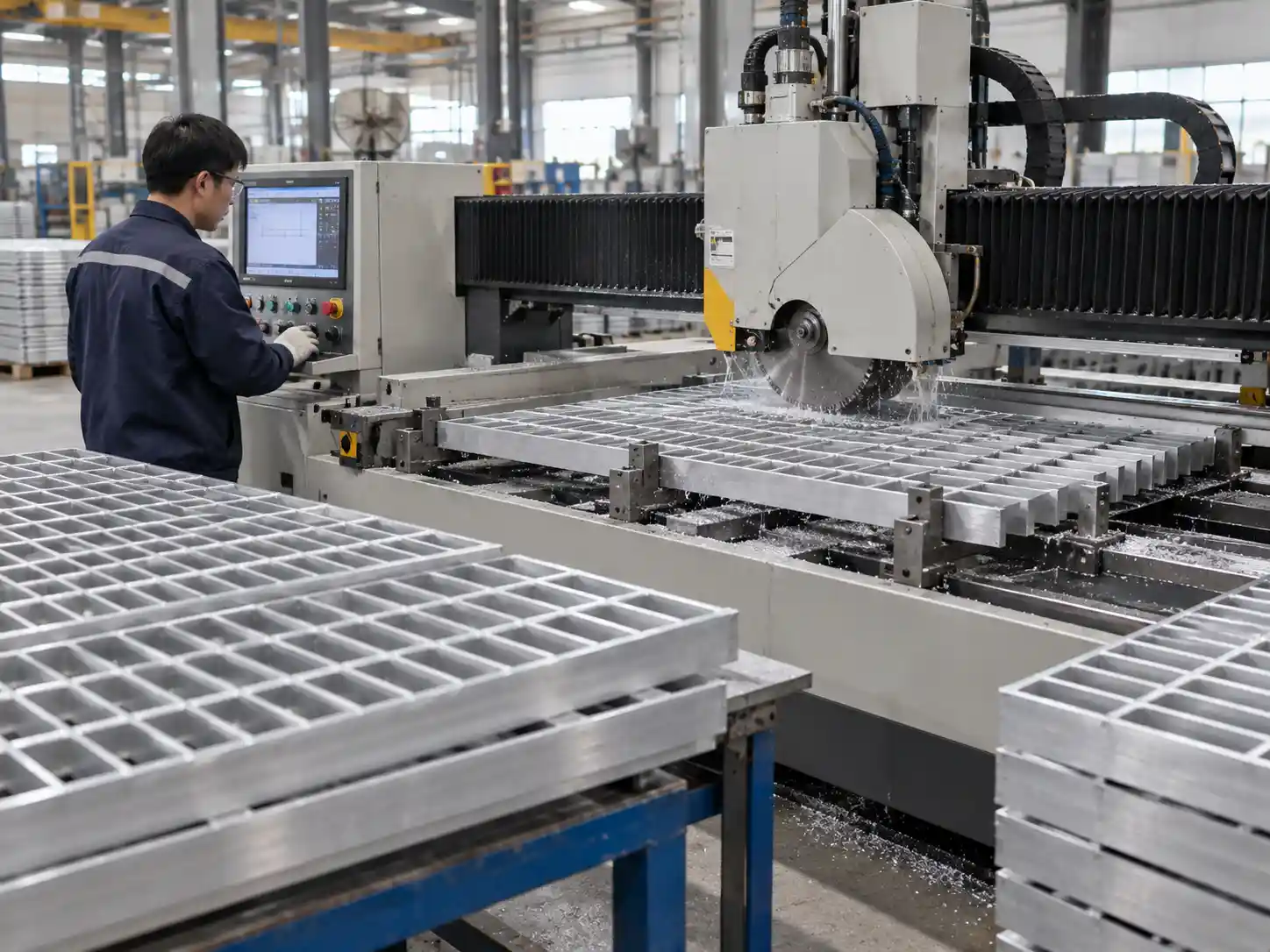

Custom Swage-Locked Bar Grating Fabrication
Swage-locked panels can be fabricated into project-specific components according to structural and installation drawings.
Cutting & Sizing
Panels can be cut to finished widths, lengths and installation dimensions.
Banding
Panel edges and openings can be banded where required for installation and finished appearance.
Cut-Outs & Notching
Custom openings can be produced around pipes, columns, cable routes and equipment.
Mounting Preparation
Clips, fixing points and other installation details can be prepared according to project requirements.
Why Choose Us as Your Swage-Locked Bar Grating Supplier?
We supply custom swage-locked grating with controlled dimensions and fabricated panel preparation for project-based access systems.
Grating Size Control
Bearing bar profile, spacing, surface and finished panel dimensions can be prepared according to approved specifications.
Custom Fabrication
Panels can be cut, banded, notched and prepared with required project openings.
Lightweight Panel Supply
Aluminum construction supports projects where reducing panel weight is important.
Project Identification
Different panel sizes and fabrication details can be marked and packed according to installation locations.
For quotation, send us the bearing bar profile, size, spacing, panel dimensions, clear span, load requirement, surface, quantity and fabrication drawings.
Swage-Locked vs. Press-Locked Bar Grating
Both use mechanical locking rather than conventional welded construction, but the bar connection and typical material selection are different.
| Comparison | Swage-Locked Bar Grating | Press-Locked Bar Grating |
|---|---|---|
| Construction | Cross bars mechanically swaged into bearing bars | Notched bars mechanically press-locked together |
| Common Material | Primarily aluminum | Aluminum, steel and stainless steel |
| Bearing Bar Forms | Rectangular and I-bar commonly used | Primarily flat bearing-bar grid |
| Weight | Often selected for lightweight systems | Depends strongly on material |
| Appearance | Functional open industrial grid | Clean, uniform grid |
| Typical Use | Lightweight platforms and access systems | Industrial and architectural flooring |
Choose Swage-Locked Bar Grating when lightweight aluminum construction is a major requirement.
Choose Press-Locked Bar Grating when a mechanically locked grid with a broader material range or more uniform appearance is preferred.
Case Study : Aluminum Swage-Locked Grating for Marine Access Platforms
This project required lightweight fabricated aluminum grating panels for maintenance access around marine equipment.
Project Requirement
A marine equipment contractor required removable grating panels for elevated service platforms exposed to moisture and outdoor conditions.
The project included several panel sizes and cut-outs around piping, supports and equipment bases.
Reducing component weight was important because panels needed to be periodically removed for inspection and maintenance.
Manufacturing Solution
Aluminum swage-locked bar grating was selected to provide an open walking surface while reducing finished panel weight.
Panels were cut according to the approved platform layout, and required notches and equipment openings were fabricated before installation preparation.
Bearing-bar direction and panel dimensions were maintained according to the structural layout, with banding added where required around finished edges and cut-outs.
Inspection & Packaging
Panel dimensions, bearing-bar direction, cut-outs, edge banding and identification marks were checked before shipment.
Panels were grouped by installation area and protected during packing to simplify onsite handling.
Swage-Locked Bar Grating FAQs
Swage-locked grating uses a mechanical swaging process to lock cross bars into bearing bars and create a rigid open-grid panel.
Aluminum is the primary material used for swage-locked bar grating.
Rectangular and I-shaped bearing bars are commonly available in swage-locked aluminum grating.
Yes. Smooth, grooved and serrated surface configurations are available depending on the selected grating series.
Yes. Panels can be cut and fabricated according to project drawings.
Yes. Custom cut-outs, notches and banding can be incorporated into fabricated panels.
Bearing bar profile and size should be selected together with spacing, clear span and project load requirements.
Provide bearing bar shape and size, spacing, panel dimensions, clear span, load requirement, surface, quantity and fabrication drawings.
