Flattened Expanded Metal Overview
Flattened expanded metal is produced by rolling standard expanded metal after expansion. This process reduces the raised profile and creates a smoother, thinner and more level surface.
It is commonly selected where easier handling, a lower installation profile and a cleaner finished appearance are required.
Flattened Expanded Metal Sizes and Specifications
Flattened expanded metal should be specified according to its final dimensions and profile after rolling.
| Specification | Available Options | Ordering Notes |
|---|---|---|
| Material | Carbon steel, stainless steel, aluminum or galvanized steel | Select according to strength, corrosion resistance and weight |
| SWD & LWD | According to the required mesh pattern | Defines the short and long directions of the mesh |
| Strand Width | Selected according to the mesh and performance requirements | Influences strength, weight and open area |
| Finished Thickness | According to the flattened product specification | Confirm the required final profile rather than only the original sheet thickness |
| Sheet Size | Standard format or custom width and length | Availability depends on material and mesh pattern |
| Mesh Direction | SWD or LWD aligned with sheet length | Important for repeat panels and consistent appearance |
| Flatness | Standard production or drawing-specific requirement | Important for inserts, framed panels and assemblies |
| Edge Condition | Random cut, trimmed, framed or U-edged | Select according to handling and installation |
| Surface Finish | Mill finish, galvanized, painted, powder-coated or anodized | Depends on the selected base material |
| Supply Format | Full sheets, cut panels or fabricated parts | Confirm secondary processing before quotation |
For SWD, LWD and mesh measurement details, visit Expanded Metal Sizes & How to Measure.
Why Choose Flattened Expanded Metal?
Flattened expanded metal is preferred when surface profile and ease of integration are more important than the texture of standard raised material.
Smooth Surface
Rolling reduces the raised strand profile and produces a flatter surface for handling, framing and finished assemblies.
Lower Profile
The reduced overall thickness makes flattened expanded metal easier to integrate into panels, inserts and components with limited installation depth.
Easier Assembly
A flatter surface provides more consistent contact with surrounding frames, brackets and other components during fabrication.
Cleaner Appearance
The level profile creates a more uniform visual finish for architectural panels, cabinet inserts and decorative applications.
Custom Flattened Expanded Metal Fabrication
Flattened expanded metal can be supplied as raw sheets or processed into finished panels and OEM components.
Cutting and Sizing
Sheets can be cut into custom panels, strips and shaped blanks while maintaining the required dimensions and mesh orientation.
Bending and Forming
Flattened sheets can be formed into covers, inserts and panel components according to approved drawings.
Welding and Framing
Flat mesh panels can be welded into frames or assembled with brackets and mounting sections for direct installation.
Surface Finishing
Galvanizing, painting, powder coating and anodizing can be selected according to the material and final environment.
Expanded Metal Available Materials
Expanded metal is available in different metals to meet requirements for strength, weight, corrosion resistance and appearance.
Stainless Steel Expanded Metal
Stainless steel provides corrosion resistance for food processing, chemical, marine and demanding industrial environments.
Aluminum Expanded Metal
Aluminum is lightweight and corrosion-resistant for transportation, ventilation, architectural and decorative components.
Carbon Steel Expanded Metal
Carbon steel provides strength and cost efficiency for industrial guards, covers, racks and fabricated parts.
Galvanized Expanded Metal
Galvanized steel has a zinc-protected surface for outdoor, construction, security and general industrial projects.
Flattened Expanded Metal Applications
Flattened expanded metal is well suited to projects requiring a smooth surface, low profile and consistent visual appearance.
Decorative Cabinet Door Inserts
Expanded Metal Ceilings
Expanded Metal Facades and Cladding
Railings and Infill Panels
Why Choose Us for Flattened Expanded Metal Supplier ?
We focus on the production details that affect flatness, finished dimensions and repeat panel consistency.
Controlled Final Profile
Finished thickness and sheet condition are checked according to the approved specification after flattening.
Stable Panel Flatness

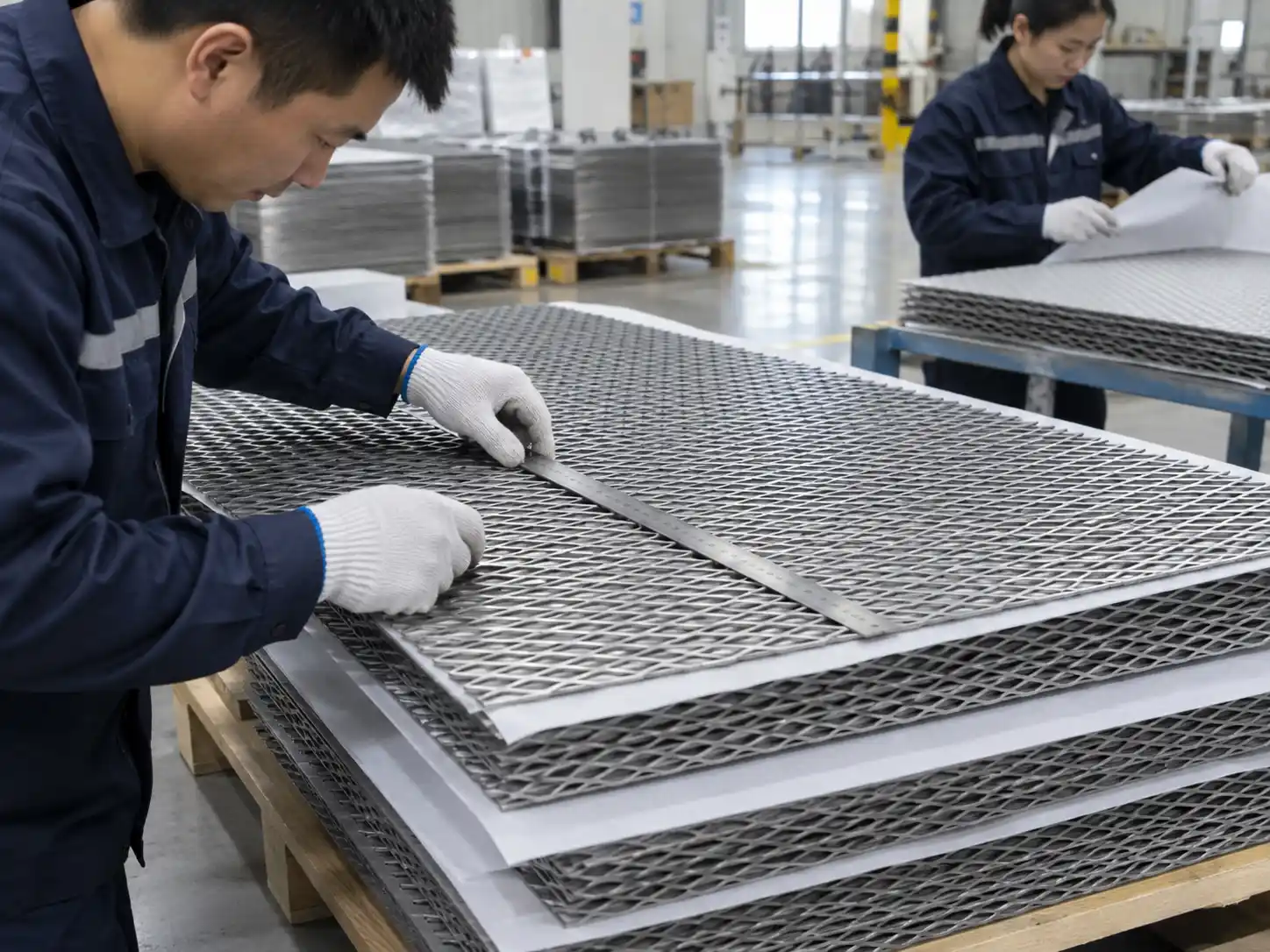

Sheets and cut panels are inspected for visible distortion before fabrication and packing.
Consistent Mesh Orientation
SWD and LWD direction can be maintained across repeat panels for a uniform appearance.
Protected Finished Surfaces
Coated and finished sheets can be separated and supported to reduce rubbing and deformation during transport.
How to Order Flattened Expanded Metal
Provide the following information so we can confirm the specification and prepare an accurate quotation.
Material
Specify carbon steel, stainless steel, aluminum, galvanized steel or another required material.
Mesh Specification
Provide the SWD, LWD, strand width or a reference mesh designation.
Finished Thickness
Confirm the required flattened thickness or final profile specification.
Sheet Dimensions
Provide the finished width, length, quantity and required mesh orientation.
Flatness and Finish
Specify any flatness requirement together with the required surface treatment.
Fabrication Requirements
Send drawings for cutting, bending, welding, framing or other secondary processing.
Flattened vs. Standard Expanded Metal
The additional flattening process creates clear differences in surface profile and product selection.
| Comparison | Flattened Expanded Metal | Standard Expanded Metal |
|---|---|---|
| Surface | Smooth and level | Raised and textured |
| Processing | Rolled after expansion | Supplied directly after expansion |
| Overall Profile | Lower | Higher |
| Handling | Smoother surface | More pronounced texture |
| Assembly | Easier for low-profile panels and inserts | Suitable for general fabrication and rigid panels |
| Typical Selection | Inserts, screens, decorative and architectural panels | Guards, fencing and general industrial components |
Choose Flattened Expanded Metal when a smoother surface and lower profile are preferred.
Choose Standard Expanded Metal when the original expanded profile and surface texture are more important.
Typical Manufacturing Case: Flattened Mesh Cabinet Inserts
A custom furniture manufacturer required flattened expanded metal inserts for a series of storage cabinets. The panels needed a consistent mesh appearance and a low profile so they could fit inside narrow metal frames.
Project Requirements
Several insert sizes were required for different cabinet doors, while the mesh orientation and finish had to remain consistent across the furniture range.
Manufacturing Solution
Flattened aluminum expanded metal was cut to the required dimensions with the same LWD orientation across all panels.
The inserts were trimmed to fit the customer’s frame system and powder-coated in a matte finish to match the cabinet hardware.
Inspection and Packaging
Panel dimensions, flatness, mesh direction and coating appearance were checked before packing. Protective separators were placed between finished panels to reduce surface rubbing during transportation.
This solution is suitable for cabinet inserts, furniture panels and decorative components requiring a smooth, low-profile mesh surface.
Flattened Expanded Metal FAQs
Flattened expanded metal is standard expanded metal that is rolled after expansion to reduce the raised profile and create a smoother, more level surface.
Standard expanded metal retains the raised profile created during expansion. Flattened expanded metal receives an additional rolling process to produce a lower and smoother surface.
Flattening reduces the overall finished profile. The final thickness depends on the original material and mesh specification.
Available dimensions depend on the material, thickness and mesh pattern. Full sheets and custom cut panels can be supplied according to project requirements.
Yes. Sheets can be cut into specified panels, inserts, strips and shaped parts according to drawings.
Yes. It can be cut, bent, welded and framed for panels, inserts and custom components.
