Welded Wire Mesh Overview
Welded wire mesh is manufactured from longitudinal and transverse wires permanently joined at each intersection to create a rigid and dimensionally stable grid.
Unlike woven wire mesh, the wires remain fixed at the intersections, making welded mesh suitable for applications where consistent openings, panel rigidity and dimensional stability are important.
Welded wire mesh can be supplied with square or rectangular openings in different materials, panel sizes, roll formats and fabricated forms according to project requirements.
Welded Wire Mesh Specifications
Welded wire mesh is mainly specified by wire diameter, grid opening, material and finished dimensions.
| Specification | Available Options | Selection Notes |
|---|---|---|
| Material | Stainless steel, carbon steel, galvanized steel and coated wire | Select according to corrosion and service environment |
| Wire Diameter | According to mesh specification | Influences rigidity, strength and weight |
| Grid Opening | Square or rectangular | Determines visibility and access restriction |
| Grid Spacing | According to required specification | Confirm clear opening or center-to-center spacing |
| Panel / Sheet Size | Standard or custom | Provide finished dimensions where possible |
| Roll Size | According to suitable mesh specification | Lighter mesh can be supplied in roll form |
| Edge Condition | Cut, trimmed or framed | Select according to handling and installation |
| Flatness | According to finished panel requirements | Important for rigid panels and fabricated components |
| Surface Finish | Plain, galvanized, coated or specified finish | Depends on material and environment |
| Tolerance | According to wire, opening and finished dimensions | Identify critical dimensions before production |
| Fabrication | Cutting, forming, welding and framing | Available according to drawings |
Welded Wire Mesh Materials
Choose the material according to corrosion resistance, strength, service environment and surface protection requirements.
Stainless Steel Wire Mesh
Corrosion-resistant welded mesh for industrial, processing and exposed environments.
Carbon Steel Wire Mesh
Strong and economical welded mesh for guards, panels and fabricated components.
Galvanized Wire Mesh
Zinc-protected welded mesh for outdoor and corrosion-exposed applications.
PVC-Coated Wire Mesh
Coated welded mesh for applications requiring additional surface protection and a finished appearance.
Welded Wire Mesh Applications
Welded mesh is commonly selected where fixed openings, visibility and rigid panel construction are required.
Wire Mesh Partitions & Enclosures
Machine Guards & Safety Barriers
Industrial Wire Mesh Fencing
Building & Construction Mesh
Welded Wire Mesh Manufacturing & Fabrication
Welded mesh can be supplied as raw material or processed into installation-ready panels and components according to drawings.
Mesh Production
Wire diameter and grid spacing are controlled according to the approved welded mesh specification.
Cutting & Sizing
Mesh can be cut into finished sheets, panels and custom component dimensions.
Welding & Framing
Welded mesh can be combined with perimeter frames, supports and mounting components.
Forming & Finishing
Panels can be bent, formed and surface-finished according to the final assembly requirements.
How to Select Welded Wire Mesh
Select welded mesh according to the required rigidity, opening size, service environment and finished installation.
Wire Diameter
Thicker wire generally provides greater rigidity and durability for guards, panels and enclosures.
Grid Opening
Choose the opening according to visibility, ventilation and the size of objects that need to be restricted.
Grid Shape
Square openings provide a uniform grid, while rectangular openings suit applications requiring different spacing in two directions.
Panel Size
Finished dimensions should be considered together with supporting frames and mounting conditions.
Edge Condition
Specify whether cut wires can remain exposed or trimmed and framed edges are required.
Environment
Choose the material and surface treatment according to moisture, corrosion and outdoor exposure.
Welded Wire Mesh Supply Forms
Welded mesh can be supplied in different forms depending on handling, fabrication and installation requirements.
Welded Mesh Panels & Sheets
Cut-to-size sheets and rigid welded mesh panels are available for guards, enclosures and further fabrication.
Welded Mesh Rolls
Suitable welded mesh specifications can be supplied in continuous rolls for cutting and further processing.
Send Us Your Welded Wire Mesh Requirements
Provide the main mesh specification and fabrication requirements so we can confirm production and prepare an accurate quotation.
Mesh Specification
Provide the material, wire diameter, grid opening and required mesh pattern.
Finished Size & Quantity
Specify panel, sheet or roll dimensions together with the required quantity.
Fabrication & Finish
Confirm cutting, framing, bending, mounting details and any required surface treatment.
Drawings & Tolerances
Provide CAD or PDF drawings and identify any critical dimensions or tolerance requirements.
Welded Wire Mesh vs. Woven Wire Mesh
Welded and woven mesh use different constructions, so the better choice depends mainly on rigidity, opening size and final application.
| Comparison | Welded Wire Mesh | Woven Wire Mesh |
|---|---|---|
| Construction | Wires welded at intersections | Interlaced wires |
| Rigidity | Higher | Generally more flexible |
| Opening Stability | Fixed grid | Determined by weave structure |
| Fine Openings | Less suitable | Better suited |
| Panel Applications | Very suitable | Often requires additional support |
| Typical Uses | Guards, enclosures, panels | Filtration, screening, separation |
Choose Welded Wire Mesh when fixed openings and rigid panel construction are important.
Choose Woven Wire Mesh when finer apertures, flexibility or filtration performance are required.
Case Study: Custom Welded Wire Mesh Guards for Automated Equipment
This project required rigid welded mesh guard panels with multiple finished dimensions and mounting details for automated production equipment.
Project Requirement
An automation equipment manufacturer required welded wire mesh guard panels for several production machines.
The panels needed to maintain clear visibility of the equipment while preventing access to moving components. Different finished dimensions were required around doors, corners and service areas.
Manufacturing Solution
Welded carbon steel mesh was selected because the fixed intersections provided stable openings and suitable rigidity for framed guard panels.
The mesh was produced according to the specified wire diameter and grid size, cut to finished dimensions and integrated into fabricated perimeter frames.
Mounting details were prepared according to the customer’s equipment drawings before surface finishing.

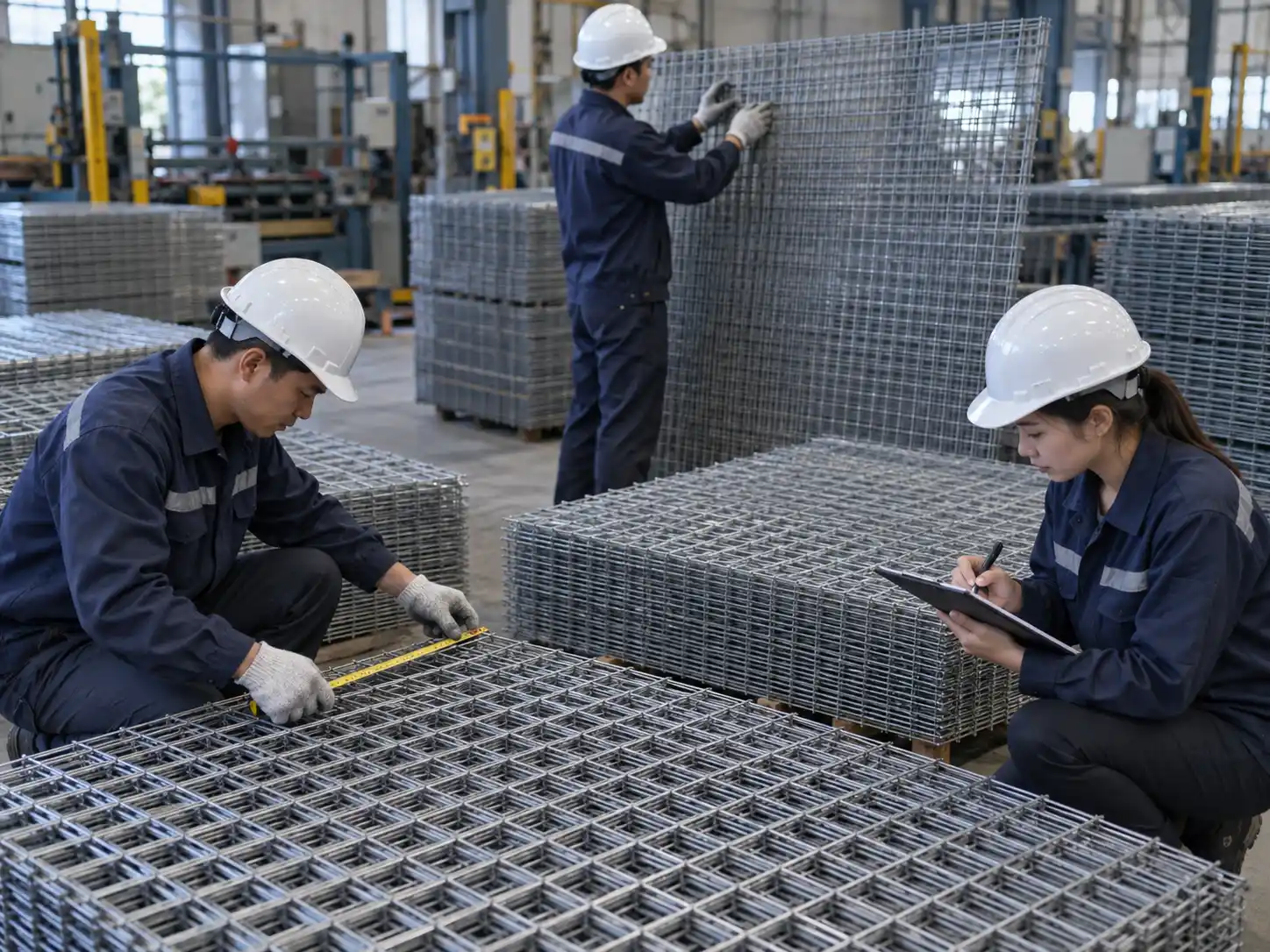

Inspection & Packaging
Grid dimensions, finished panel size, frame geometry, mounting positions and surface condition were checked before shipment.
Panels were identified according to installation position and packed with protective separators to reduce transport damage and simplify assembly.
Welded Wire Mesh FAQs
Welded wire mesh is made from intersecting metal wires permanently joined at each crossing to create a fixed grid.
Square and rectangular grid openings are commonly used for welded wire mesh.
Common materials include stainless steel, carbon steel, galvanized steel and selected coated wires.
The main specifications are wire diameter, grid opening, material and finished panel or roll dimensions.
Yes. Welded mesh can be supplied as cut sheets, rigid panels or fabricated framed assemblies.
Yes. Suitable specifications can be supplied in continuous roll form.
Yes. Welded mesh can be supplied with cut, trimmed or framed edges according to the final application.
Yes. Cutting, forming, welding and framing can be completed according to project drawings.
