Bar Grating Stair Treads Overview
Bar grating stair treads are fabricated from open-grid grating panels and prepared as finished stair components with the required width, depth, surface, nosing and side mounting details.
They provide drainage and ventilation while maintaining an open walking surface for industrial stairs, maintenance access and elevated structures.
Treads can be produced from welded, press-locked and other suitable grating constructions depending on the material, load, appearance and project requirements.
Bar Grating Stair Tread Components

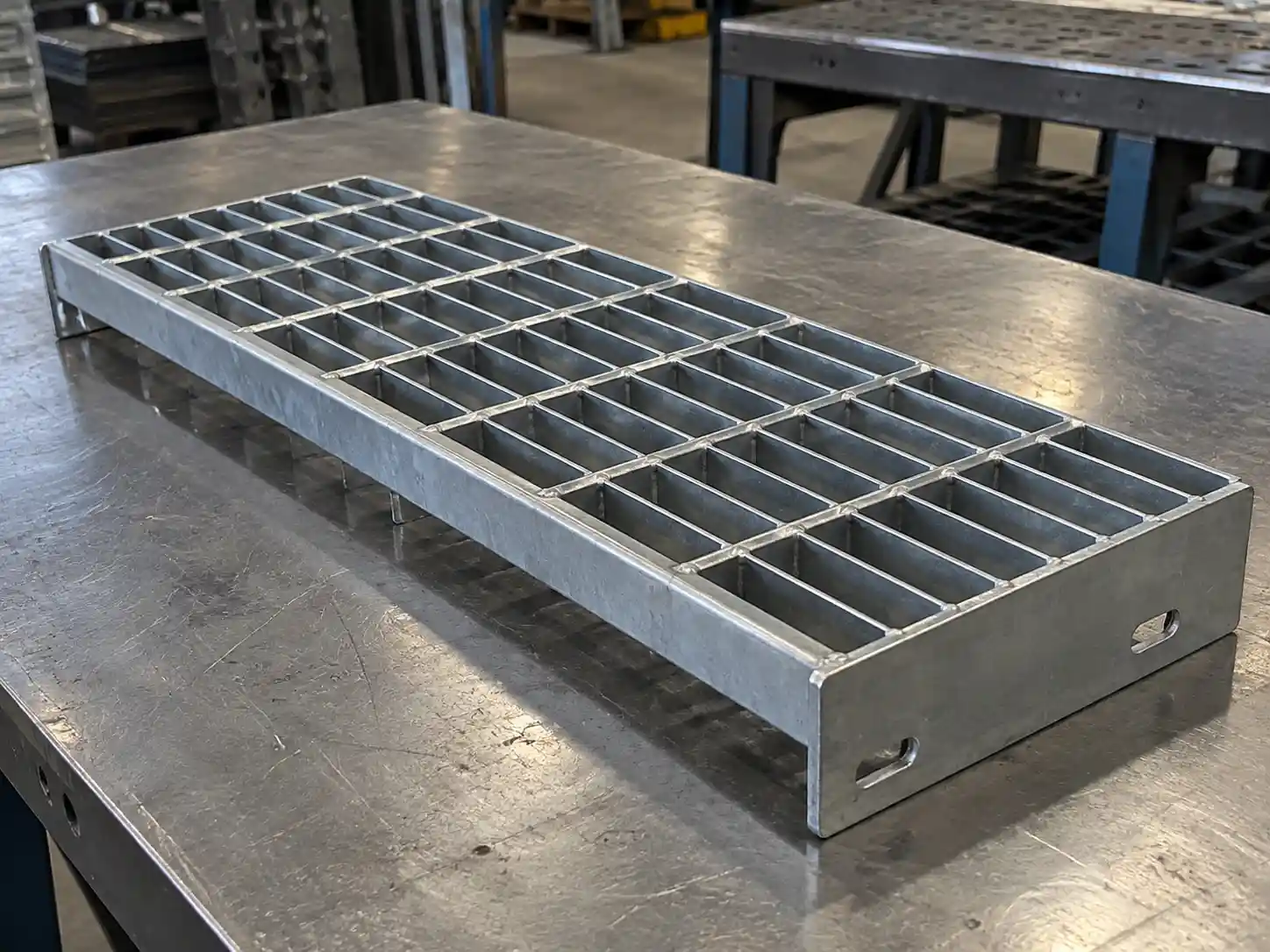

Grating Tread
The main walking surface is produced from the selected bar grating construction, bearing-bar size and spacing.

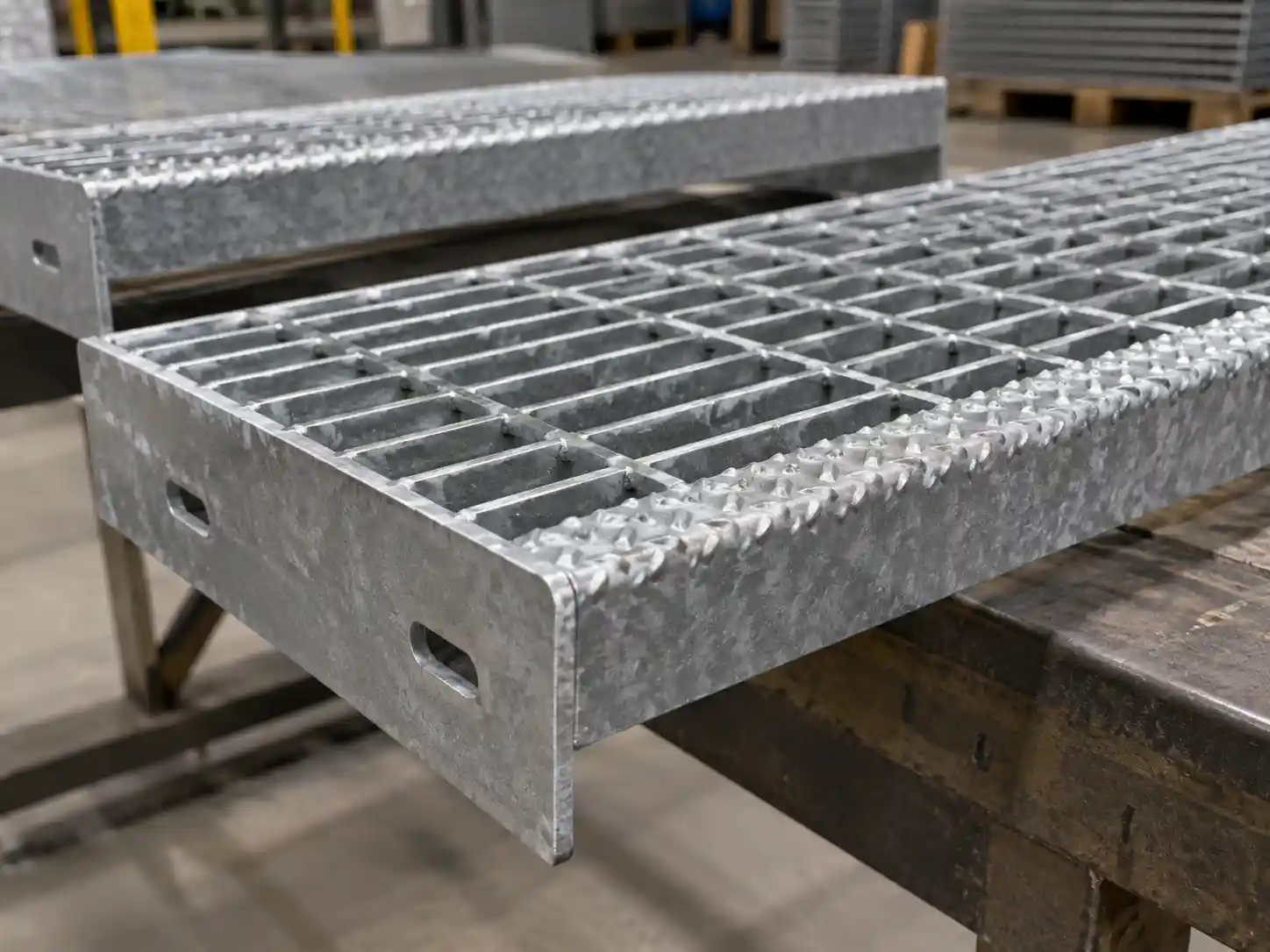

Nosing
A front nosing can provide a defined leading edge and additional visibility or traction depending on the selected design.

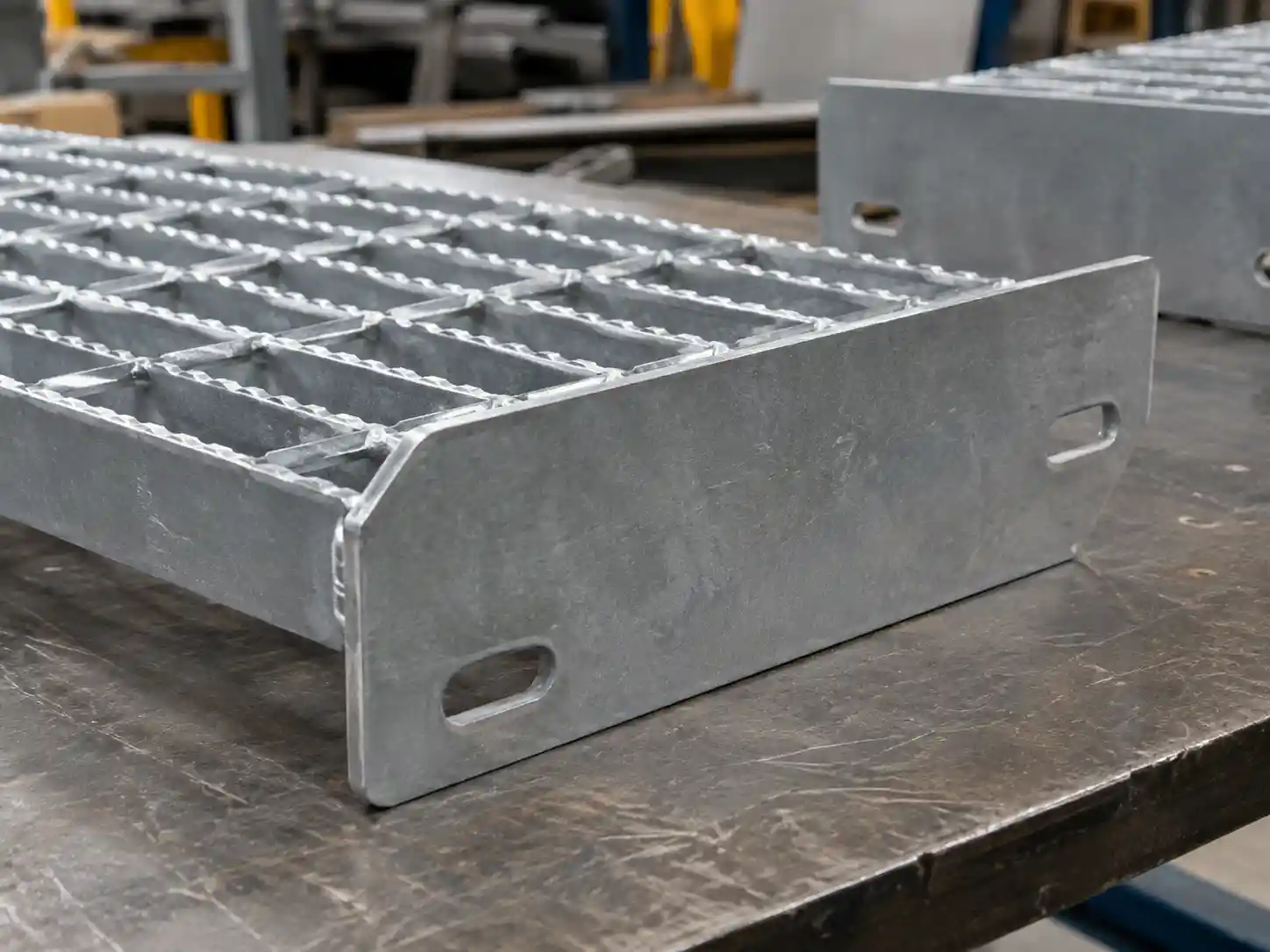

End Plates
Side plates can be attached to the tread for connection to stair stringers or supporting structures.

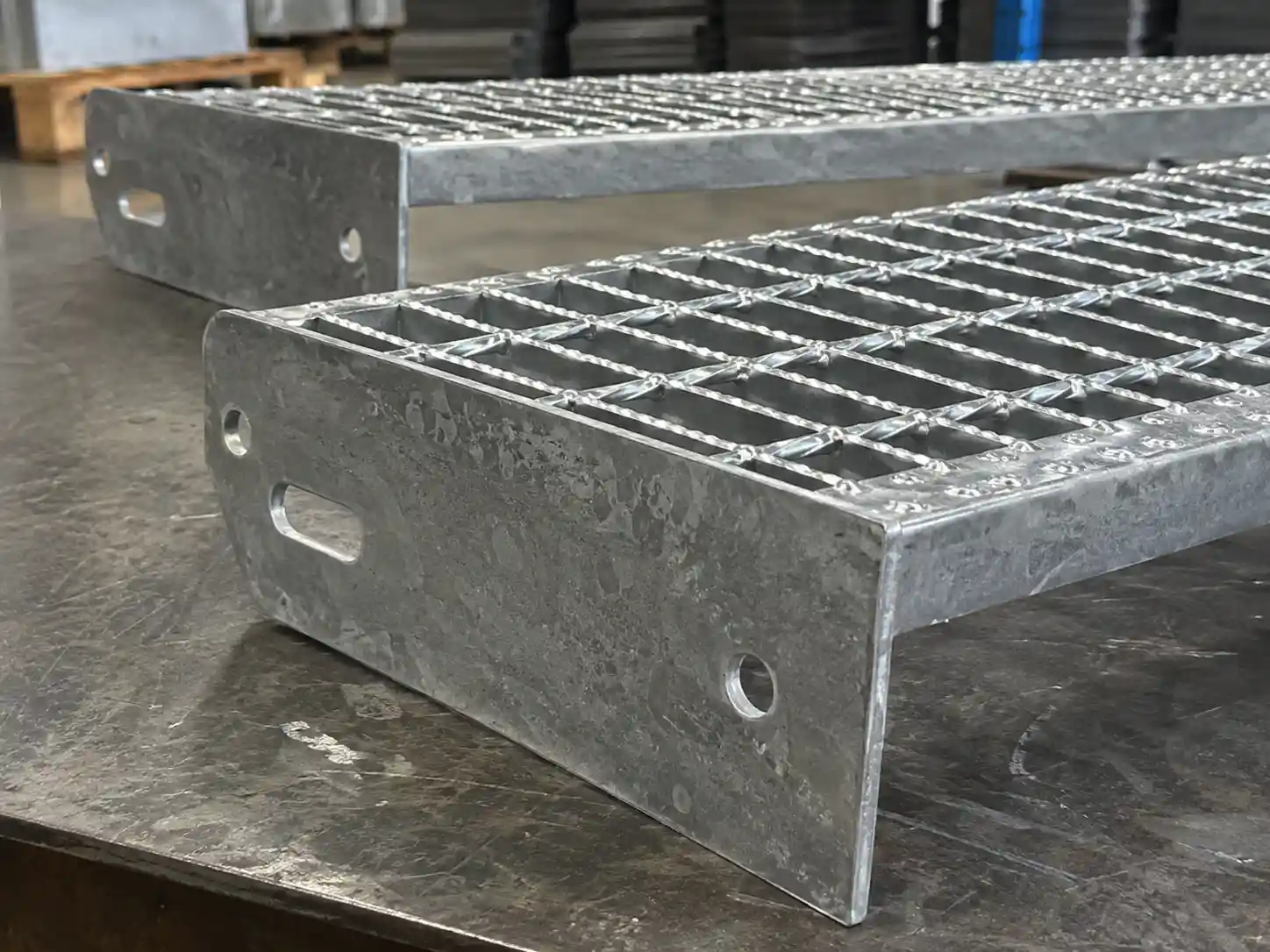

Mounting Holes
Bolt holes or other fixing details can be prepared according to approved installation drawings.
Bar Grating Stair Tread Specifications
Treads are mainly specified by grating construction, bearing bar size, tread dimensions, surface, nosing and mounting details.
| Specification | Available Options | Selection Notes |
|---|---|---|
| Grating Construction | Welded, press-locked or suitable construction | Select according to material and project |
| Material | Carbon steel, galvanized steel, stainless steel, aluminum | Depends on environment and construction |
| Bearing Bar Size | According to load and span | Important for tread strength |
| Bearing Bar Spacing | According to selected grating series | Influences opening and walking surface |
| Tread Width | Custom | Confirm stair clear width |
| Tread Depth | Custom | Confirm stair geometry |
| Surface | Smooth or serrated | Select according to traction requirements |
| Nosing | According to project design | Defines tread front edge |
| End Plates | Custom | Prepared for stair stringer connection |
| Mounting Holes | According to drawings | Confirm hole size and location |
| Finish | Mill, galvanized, painted or specified finish | Depends on environment |
| Quantity | Project-based | Identify repeated and special tread sizes |
Bar Grating Stair Tread Construction Options

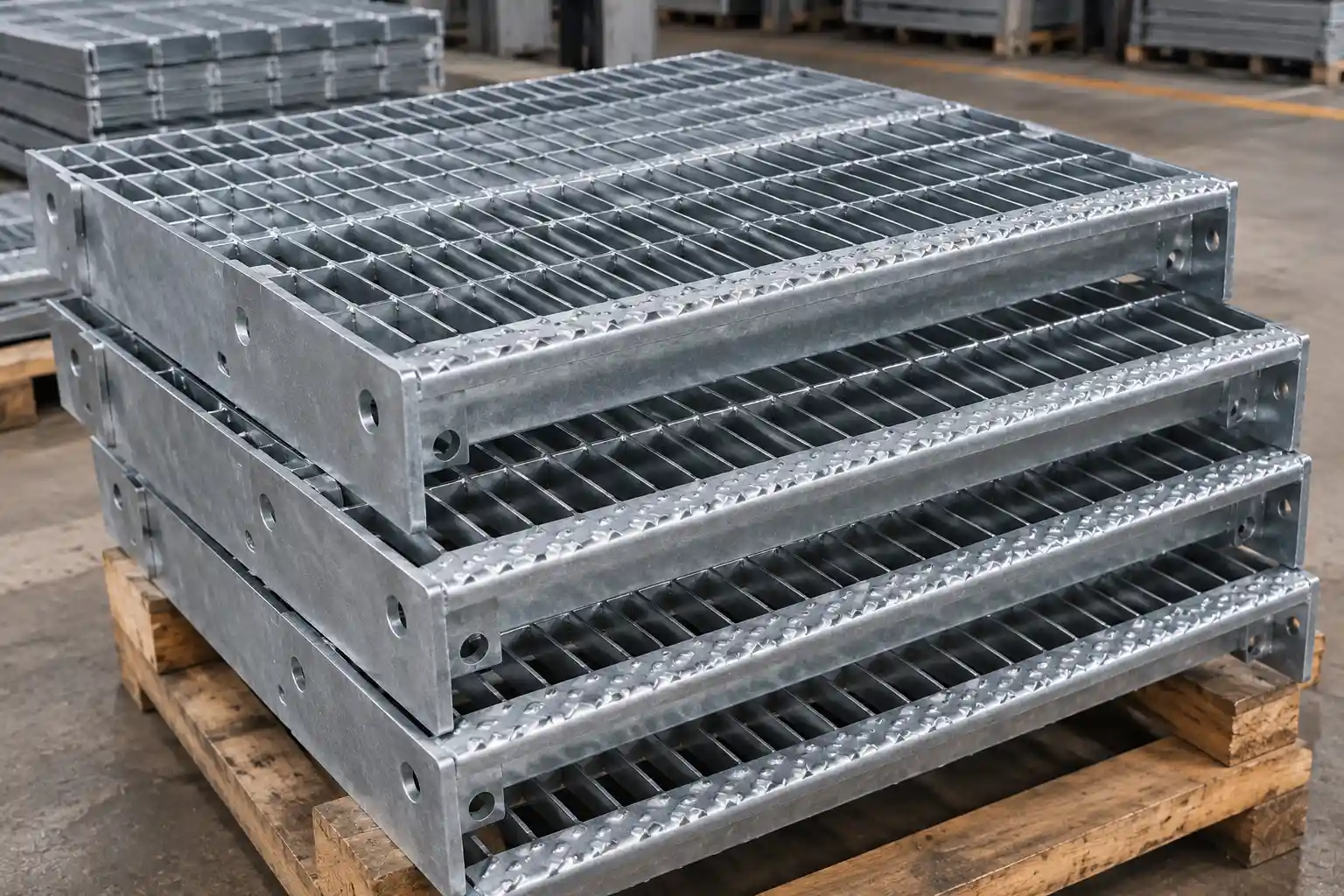

Welded Grating Stair Treads
Rigid welded grating is widely used for industrial steel stair treads and general access systems.

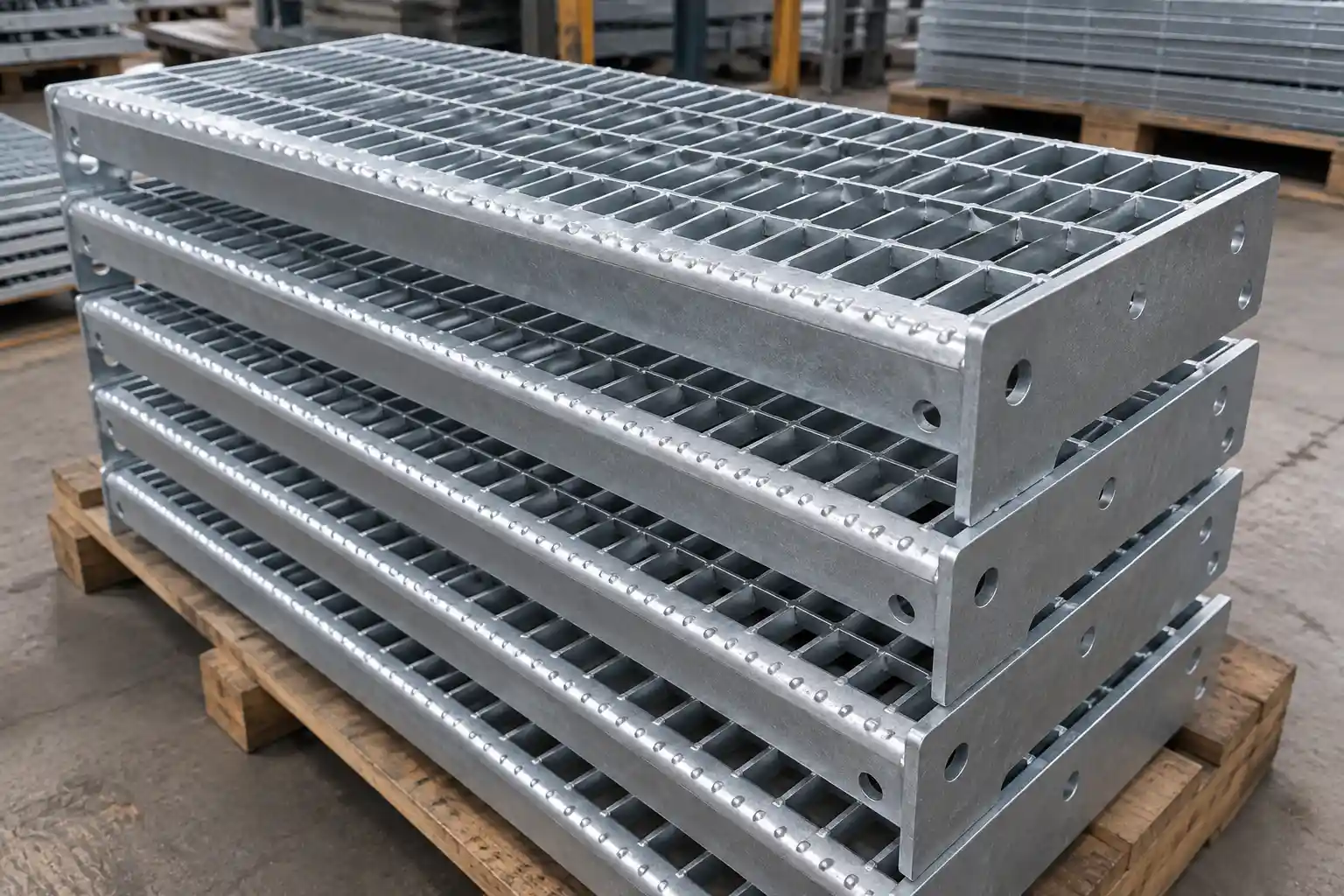

Press-Locked Grating Stair Treads
Press-locked grating provides a clean and consistent grid for industrial and architectural stair projects.

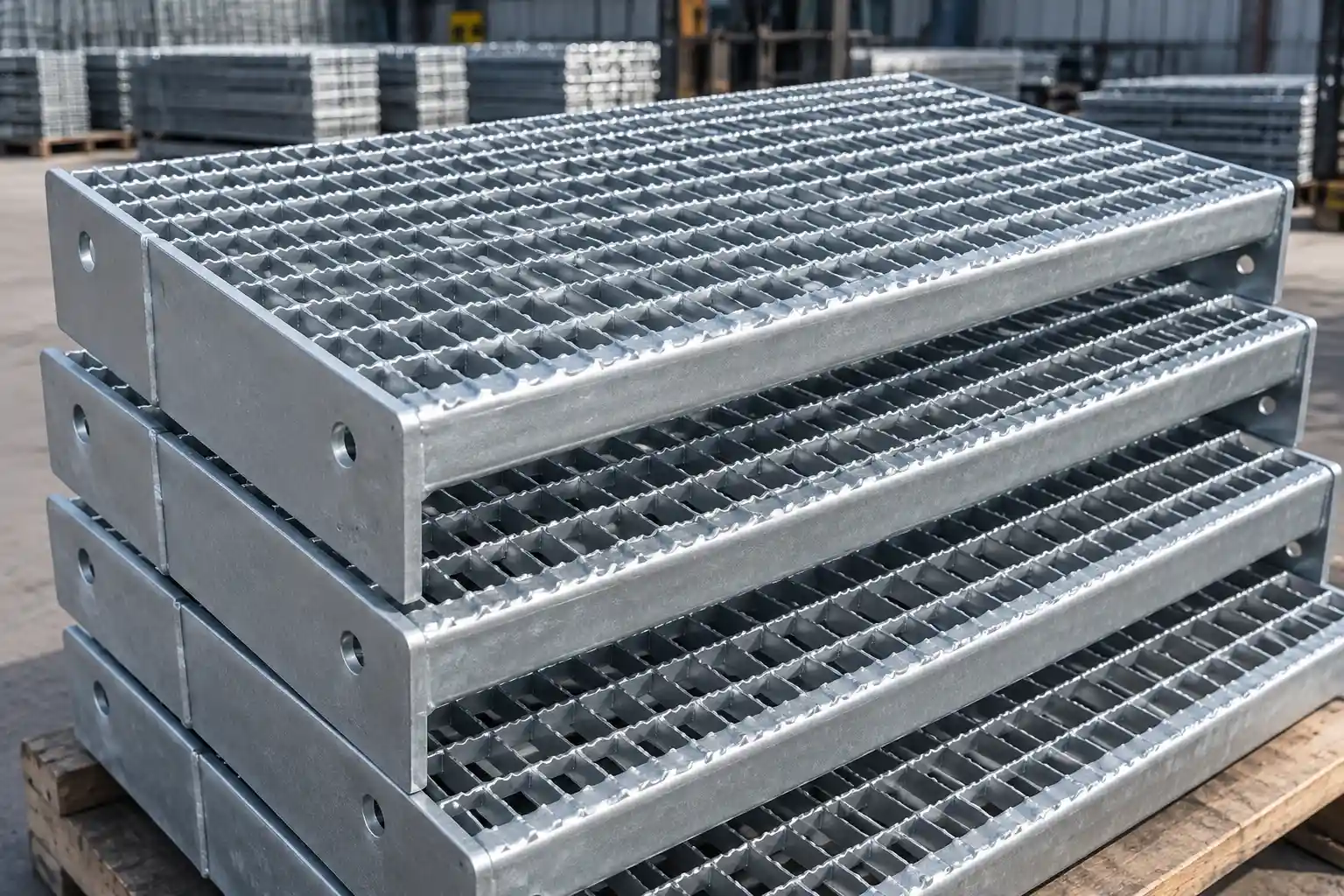

Serrated Grating Stair Treads
Serrated bearing bars provide additional traction for wet, outdoor and demanding walking conditions.

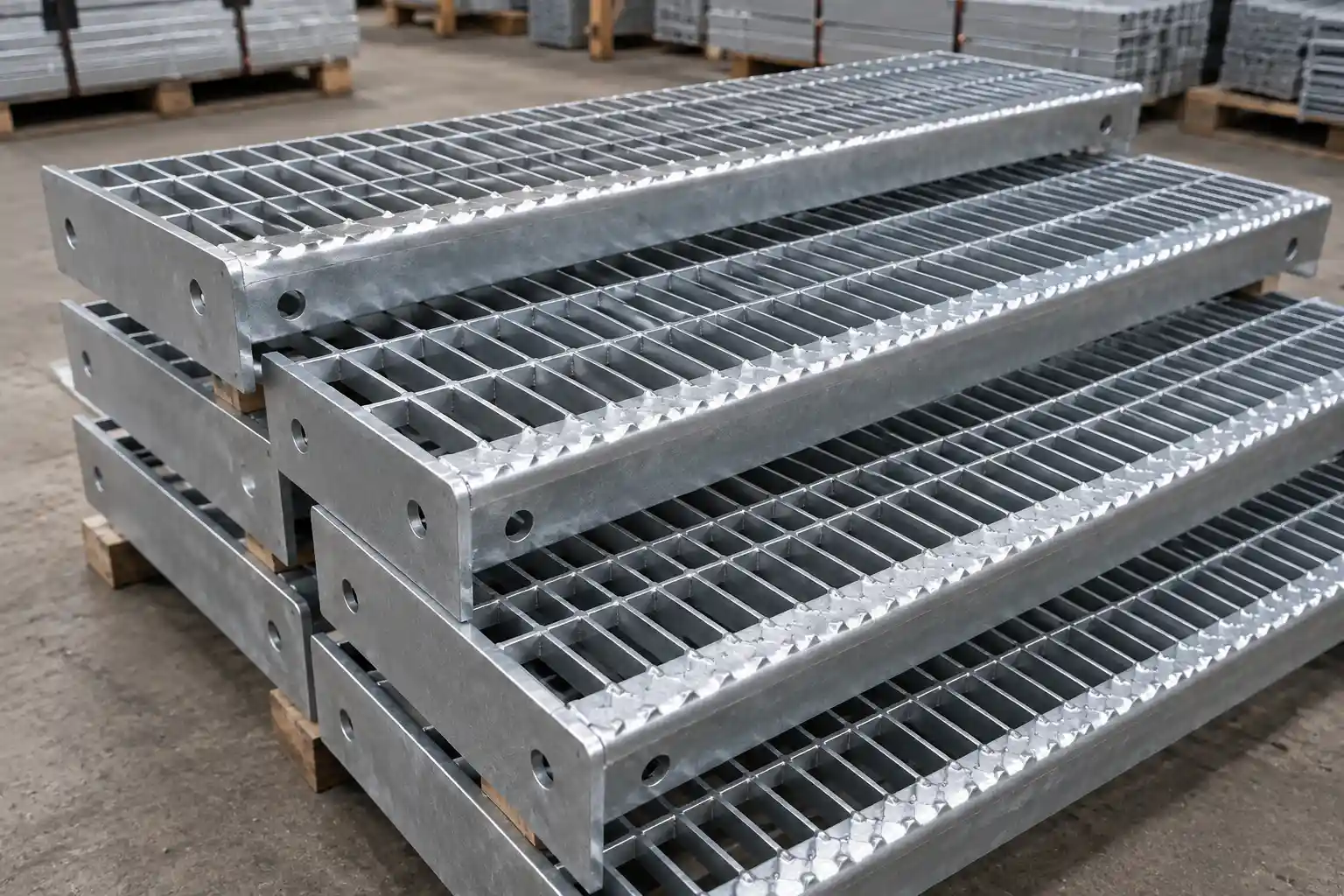

Close-Mesh Stair Treads
Reduced spacing can provide smaller openings where the project requires a more compact walking surface.
Bar Grating Stair Tread Materials
Carbon Steel
Strong and economical grating treads for industrial stairs and general access systems.
Galvanized Steel
Zinc-protected steel treads for outdoor and moisture-exposed stair systems.
Stainless Steel
Corrosion-resistant grating treads for processing and demanding service environments.
Aluminum
Lightweight and corrosion-resistant treads for suitable industrial and architectural stair projects.
Where Bar Grating Stair Treads Are Used
Bar grating stair treads are commonly used in industrial stairs, maintenance access systems, platforms, processing facilities and outdoor structures.
For stair-system selection, walking conditions and application guidance:

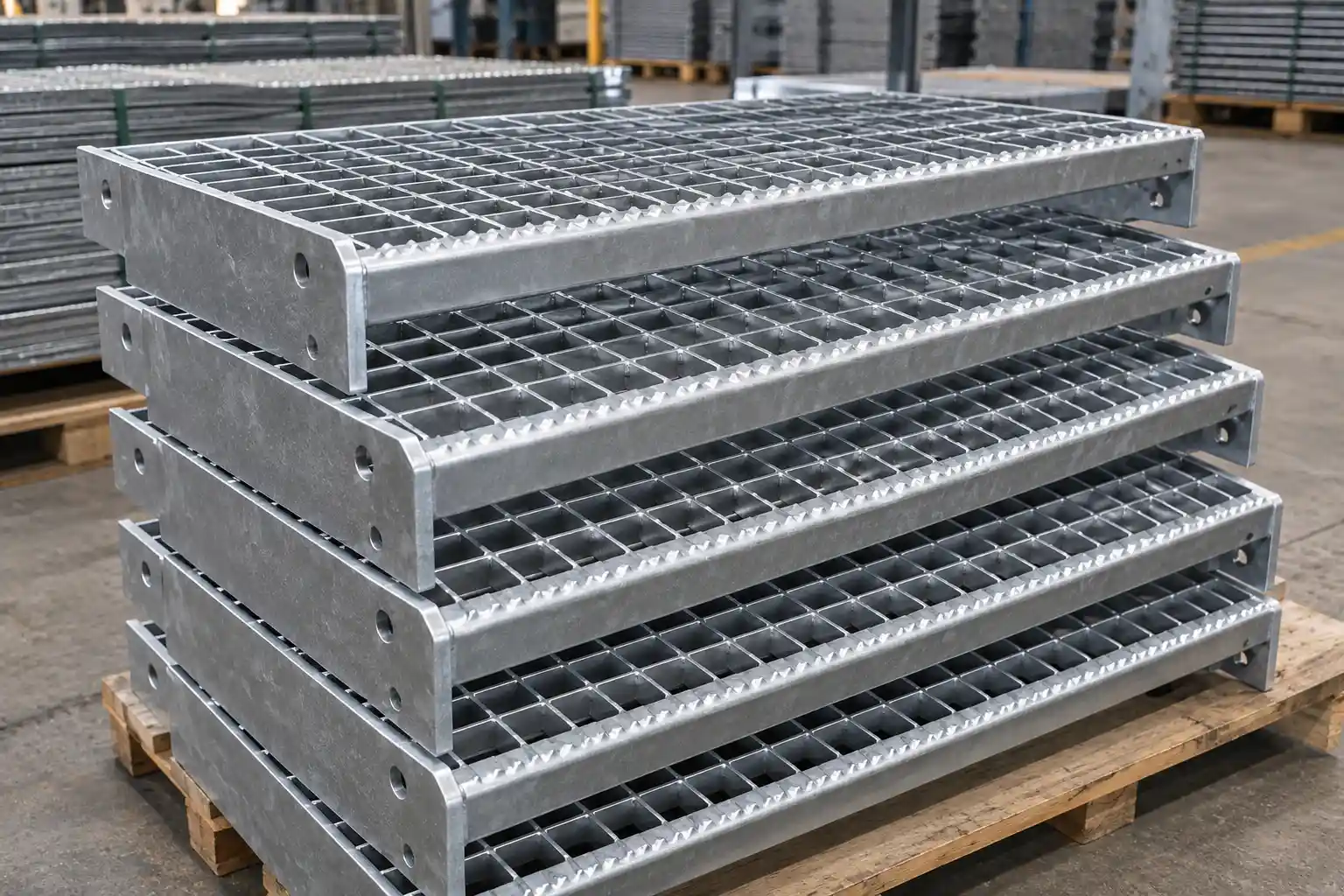

Custom Bar Grating Stair Tread Fabrication
Treads can be supplied as finished fabricated components ready for installation according to stair drawings.
Cut to Finished Size
Grating is cut according to the required tread width and depth.
Nosing Installation
The specified front nosing can be added according to traction, visibility and project requirements.
End Plate Fabrication
Side mounting plates can be prepared to fit the stair stringer arrangement.
Hole & Mounting Preparation
Bolt holes and fixing details can be produced according to approved drawings.
Why Choose Us as Your Bar Grating Stair Tread Supplier?
We supply fabricated stair treads according to grating specifications, finished dimensions and stair installation drawings.
Finished Tread Supply
Grating, nosing, end plates and mounting details can be supplied as one finished stair component.
Dimensional Control
Tread width, depth, end plates and hole locations can be produced according to approved drawings.
Multiple Grating Options
Welded, press-locked, smooth, serrated and selected close-mesh configurations are available.
Project Identification
Different tread sizes and stair locations can be marked for easier onsite installation.
For quotation, send us the grating type, material, bearing bar size, spacing, tread width and depth, nosing type, end plate details, mounting-hole drawing, quantity and finish.
Smooth vs. Serrated Grating Stair Treads
| Comparison | Smooth Stair Treads | Serrated Stair Treads |
|---|---|---|
| Surface | Conventional bearing-bar top | Notched bearing-bar surface |
| Traction | General walking conditions | Additional traction |
| Indoor Use | Common | Also available |
| Wet / Outdoor Use | Depends on environment | Often preferred |
| Cleaning | Simple open surface | Depends on debris and process |
| Selection | General access | Slippery or demanding conditions |
Choose smooth grating stair treads for general industrial access where additional traction is not required.
Choose serrated grating stair treads for wet, oily or outdoor stair systems where improved surface grip is important.
Bar Grating Stair Treads vs. Cut Grating Panels
| Feature | Finished Stair Tread | Cut Grating Panel |
|---|---|---|
| Finished Width & Depth | Yes | Panel dimensions only |
| Nosing | Available | Normally none |
| End Plates | Fabricated for stairs | Normally none |
| Mounting Holes | According to stair drawing | Normally none |
| Installation Purpose | Stair system | Flooring / platform |
| Supply Form | Finished component | Grating panel |
A finished grating stair tread is a fabricated stair component, not simply a rectangular piece cut from a grating panel.
Case Study : Galvanized Grating Stair Treads for an Industrial Access Tower
This project required multiple galvanized grating stair tread sizes for a steel maintenance tower with prefabricated stair stringers.
Project Requirement
The contractor supplied stair drawings showing several flight widths and mounting-hole arrangements.
The treads needed to match the prefabricated steel stringers, while serrated walking surfaces were required for the outdoor installation.
Each flight contained repeated tread sizes together with several special top and bottom treads.
Manufacturing Solution
Galvanized serrated bar grating stair treads were fabricated according to the approved stair schedule.
Each tread was cut to the required width and depth, fitted with front nosing and prepared with end plates.
Mounting holes were produced according to the stair-stringer drawings.
Special tread sizes were separated from the repeated standard project sizes.
Inspection & Packaging
Tread dimensions, nosing, end plates and mounting-hole positions were checked before shipment.
Each tread group was labeled by stair flight and installation position, then packed in sequence for easier onsite assembly.
Bar Grating Stair Tread FAQs
Bar grating stair treads are fabricated grating components prepared with finished dimensions, nosing and mounting details for stair systems.
Welded and press-locked grating are common choices, with construction selected according to material and project requirements.
Yes. Serrated grating is commonly used where additional traction is required.
Nosing is the finished front edge of the tread and can provide a defined leading edge and additional traction or visibility depending on the design.
Yes. Side end plates can be fabricated according to the stair-stringer mounting arrangement.
Yes. Hole size, spacing and location can be produced according to approved drawings.
Carbon steel, galvanized steel, stainless steel and aluminum can be supplied depending on the selected grating construction.
Suitable steel tread assemblies can be prepared for galvanized finish according to the project specification.
Provide grating specification, tread width and depth, nosing, end plate details, mounting-hole locations, quantity and finish.
A complete stair or tread drawing is strongly recommended when end plates, hole locations or multiple tread sizes are involved.
