Filter Wire Mesh Overview

Filter wire mesh uses woven or other suitable metal mesh as filtration media and processes it into finished components for industrial filtration and separation systems.

Depending on the application, filter mesh can be cut, formed, layered, framed or assembled into discs, screens, cylindrical elements, strainers and other custom shapes.

Aperture, mesh count, wire diameter, filter dimensions and supporting structure can be specified according to equipment and filtration requirements.

Send Your Drawing

Filter Wire Mesh Product Types

Filter mesh can be fabricated into different component forms according to the equipment, flow path and installation method.

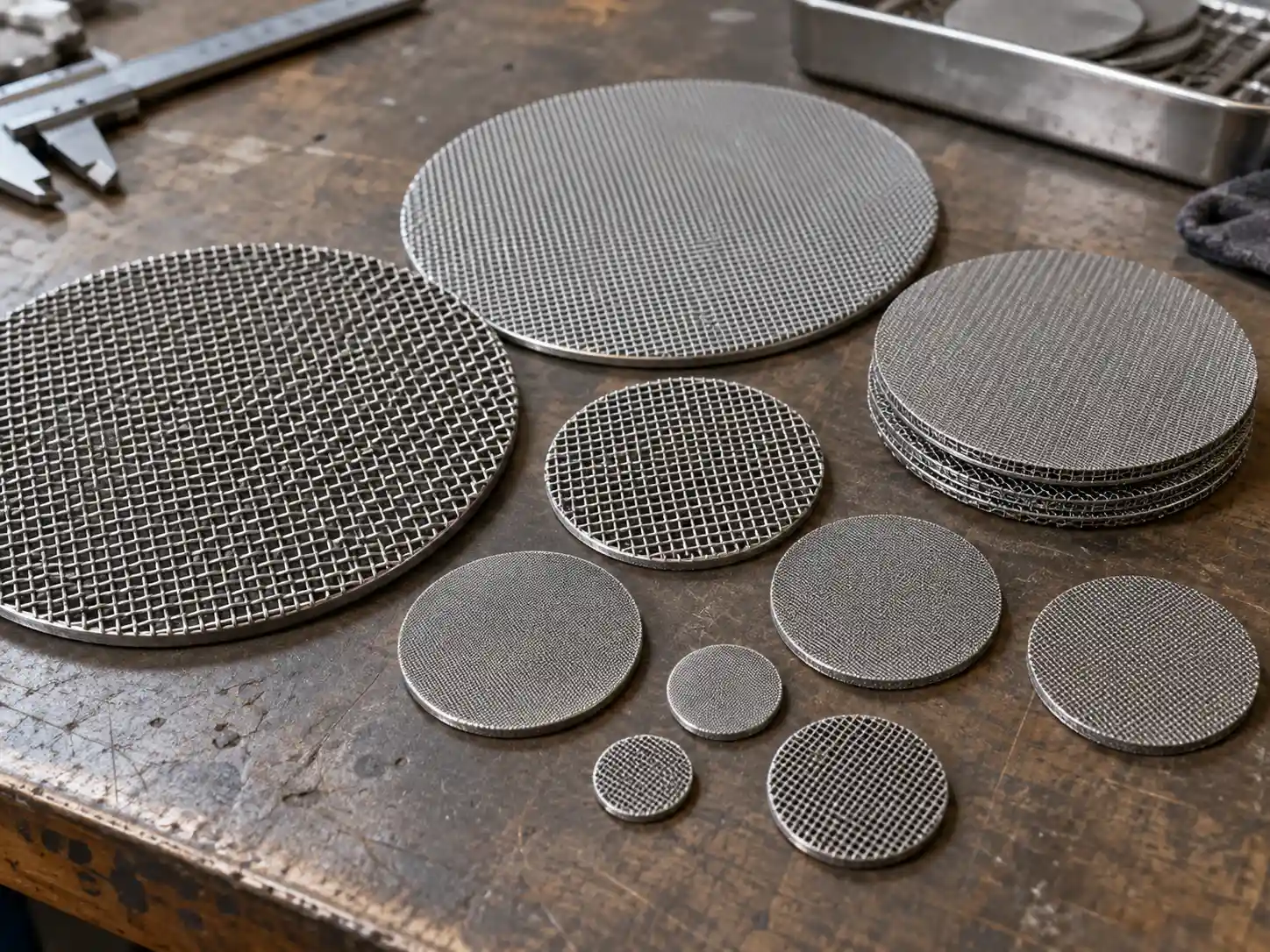

Wire Mesh Filter Discs

Flat circular mesh filters for compact filtration, screening and separation assemblies.

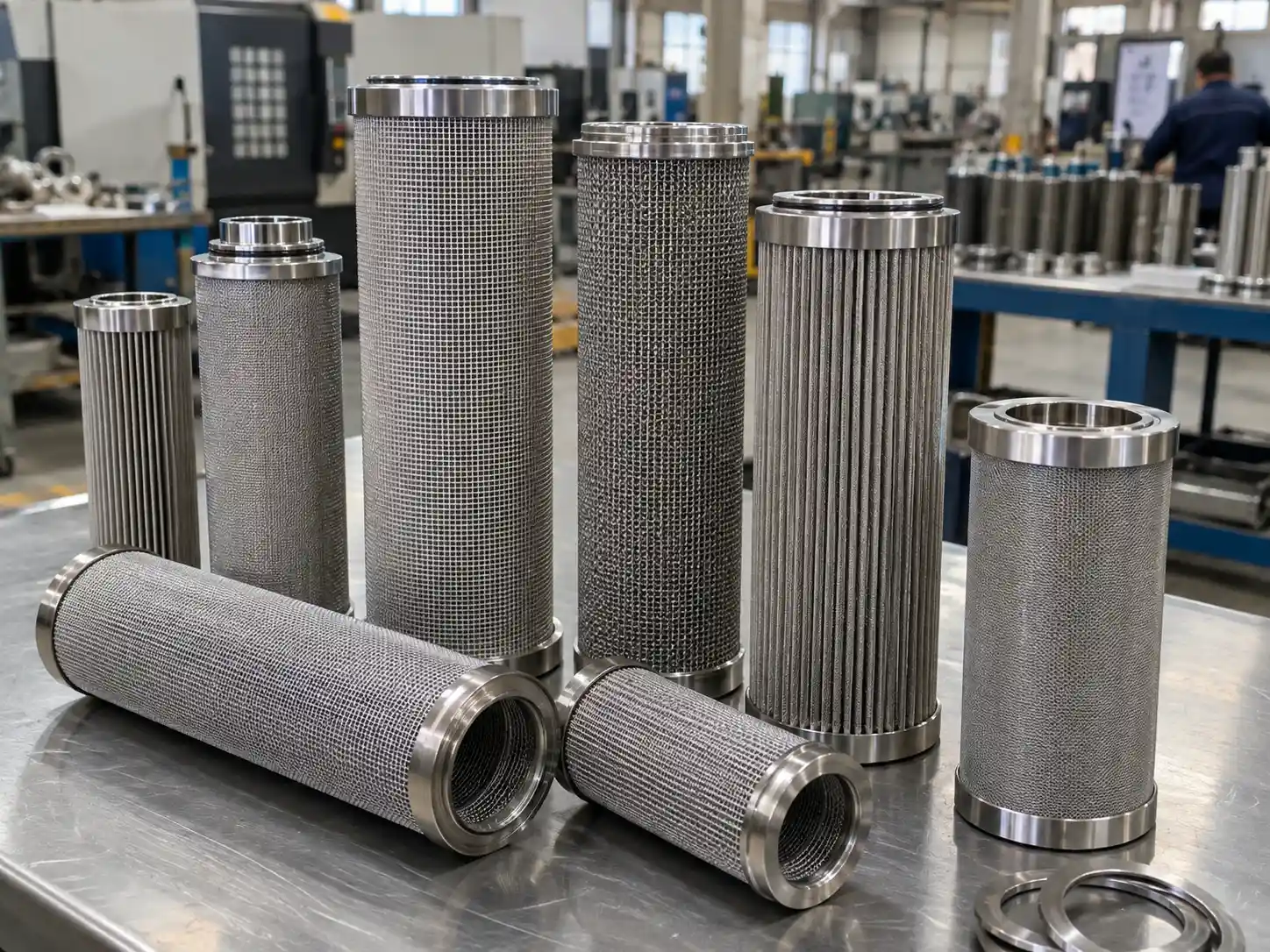

Wire Mesh Filter Elements

Custom filter components produced from selected wire mesh media and fabricated to finished dimensions.

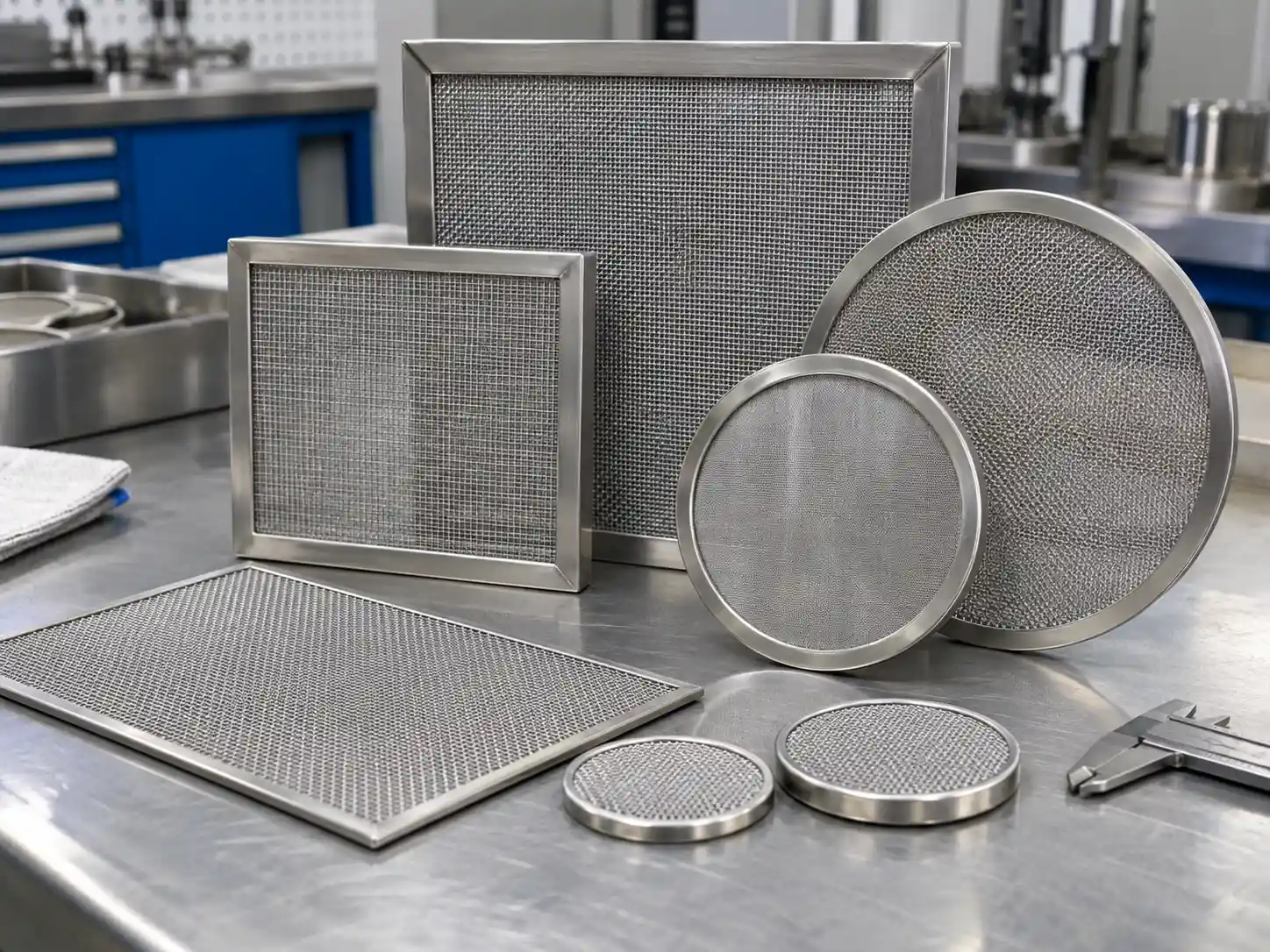

Wire Mesh Filter Screens

Flat or framed filter screens for industrial equipment, processing and replaceable filtration sections.

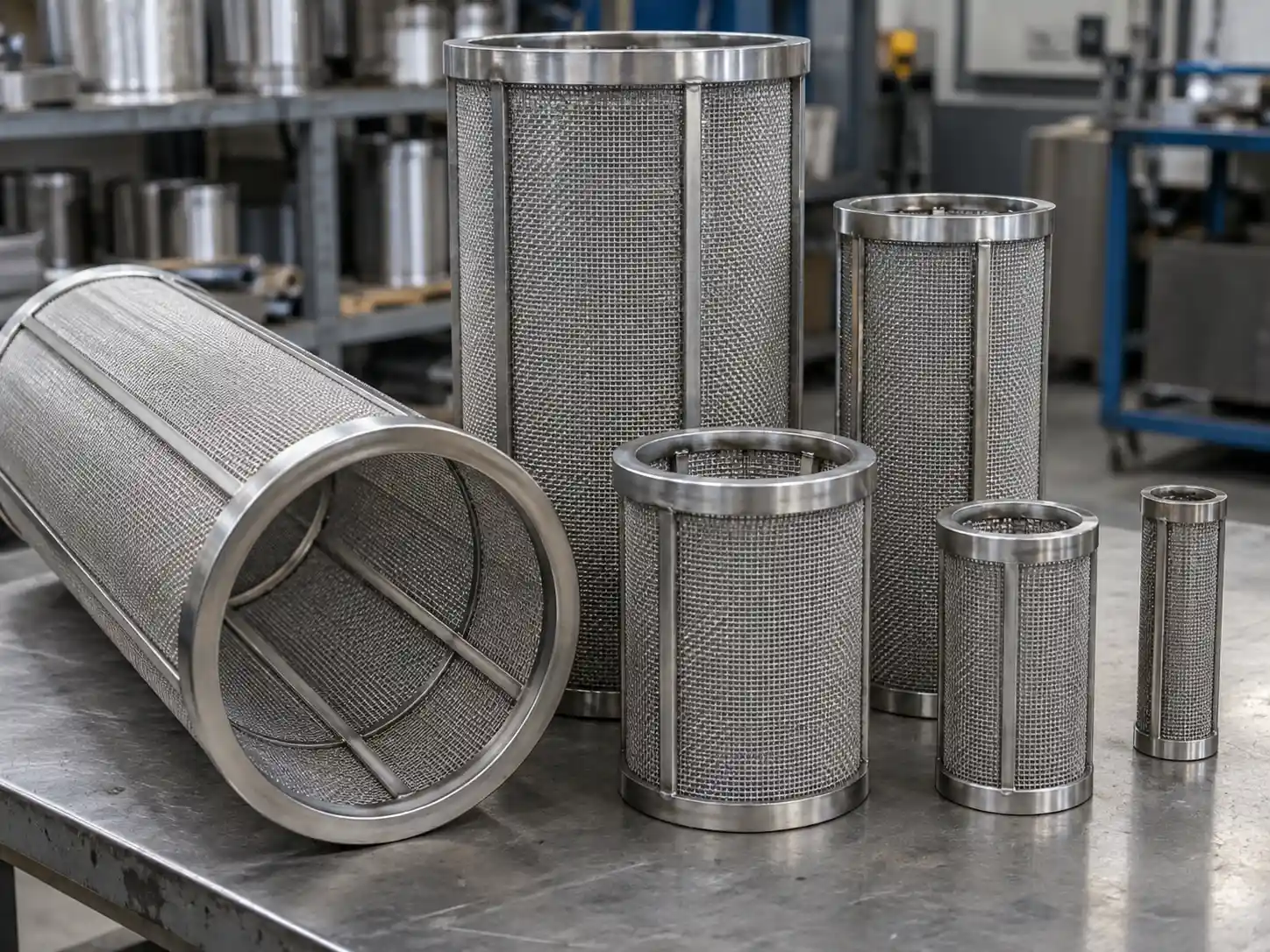

Stainless steel cylindrical wire mesh filters with reinforced rings and support frames for industrial equipment

Wire Mesh Filter Cylinders

Cylindrical mesh components for applications requiring filtration around or through a tubular surface.

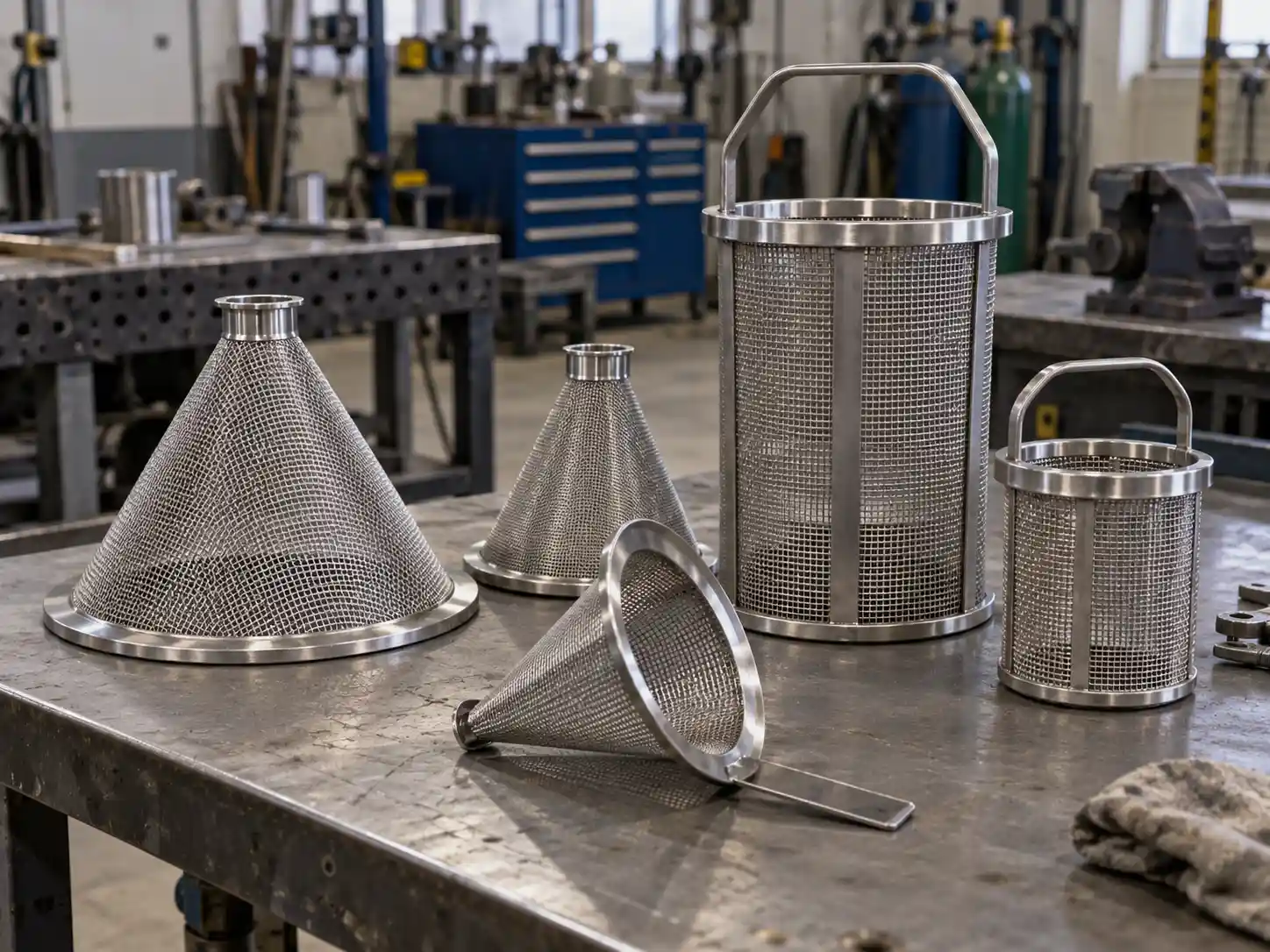

Stainless steel cone strainers and basket strainers designed for removing particles from liquids and process streams

Wire Mesh Strainers

Mesh strainers provide controlled openings for removing larger particles from liquids or process streams.

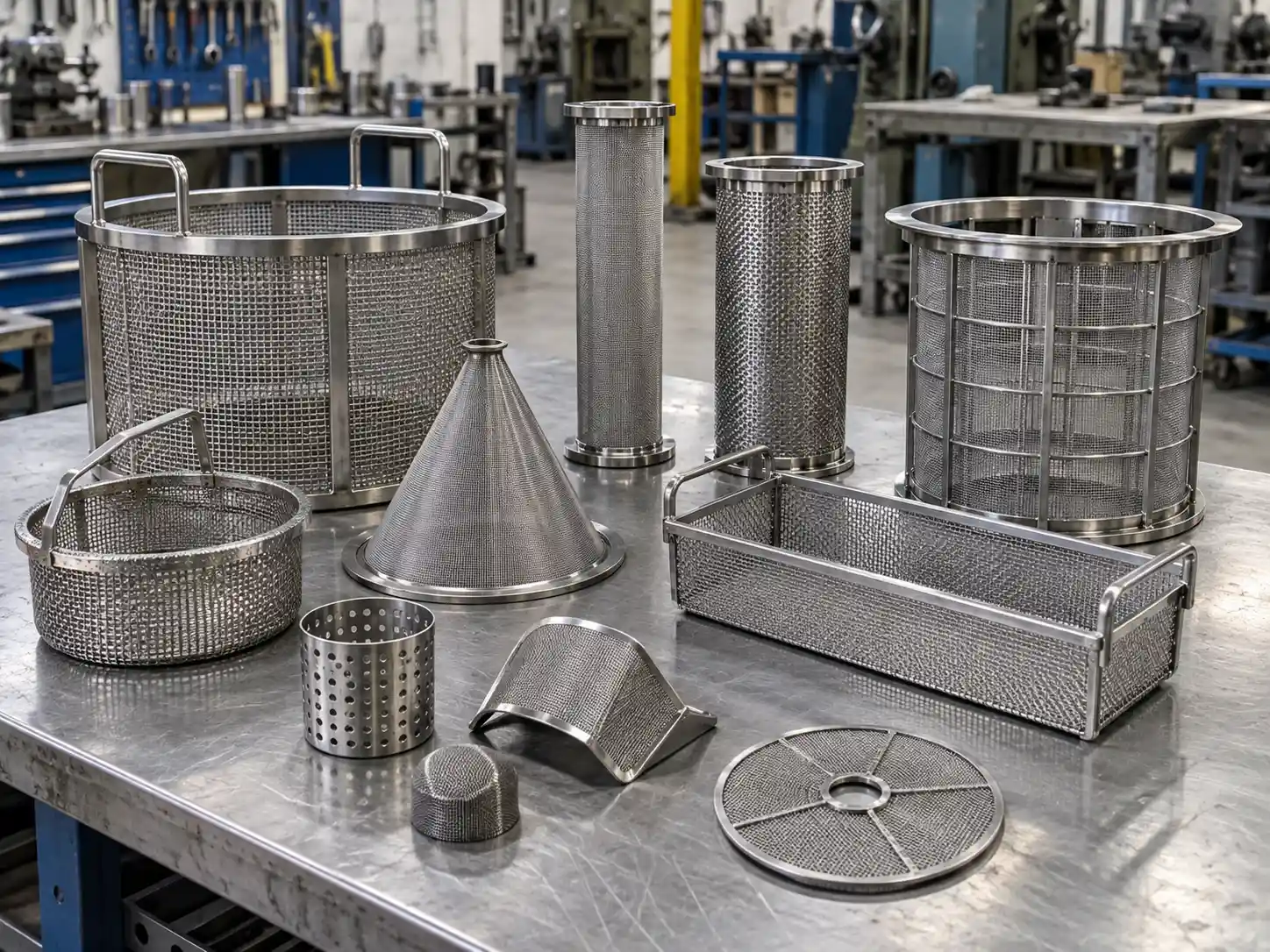

Custom stainless steel filter baskets, strainers and fabricated wire mesh components displayed in a metal workshop

Filter Baskets & Custom Components

Mesh can be formed and assembled into baskets and other equipment-specific filtration components according to drawings.

Filter Wire Mesh Specifications

Filter wire mesh is mainly specified by filtration media, aperture or mesh count, wire diameter and finished component dimensions.

Specification	Available Options	Selection Notes
Mesh Construction	Woven, Dutch weave, fine mesh or suitable mesh media	Select according to filtration requirement
Material	Stainless steel and other suitable metal mesh	Depends on media and operating environment
Wire Diameter	According to mesh specification	Influences strength and filtration structure
Aperture / Opening	According to filtration requirement	Determines particle retention
Mesh Count	According to woven mesh	Common for finer filter media
Micron Requirement	According to suitable mesh specification	Confirm with aperture and wire data
Filter Shape	Disc, screen, cylinder, basket or custom	According to equipment design
Finished Dimensions	Custom	Provide OD, ID, length or other critical dimensions
Layers	Single or multiple where applicable	Depends on structural and filtration requirements
Support Structure	Mesh only, frame or supporting component	According to filter design
Edge Condition	Cut, folded, welded, framed or enclosed	Depends on finished filter
Tolerance	According to mesh and component requirements	Identify critical dimensions
Fabrication	Cutting, forming, joining and framing	According to drawings

Filter Wire Mesh Materials

Choose filter material according to corrosion resistance, process media, temperature and operating conditions.

Stainless Steel

Corrosion-resistant filter mesh for processing, liquid filtration and demanding industrial environments.

Carbon Steel

Economical filter mesh for suitable industrial applications where corrosion resistance is not the main requirement.

Copper

Conductive and corrosion-resistant mesh for selected technical and specialty filter components.

Brass

Copper-alloy mesh for selected filtration and screening applications requiring specific material properties.

Filter Wire Mesh Applications

Fabricated wire mesh filters are used where controlled openings and replaceable filtration components are required.

Wire Mesh Filtration & Separation

Food Grade Mesh for Processing

Oil & Gas Filtration Mesh

High-Temperature & Furnace Mesh

Get a Quote

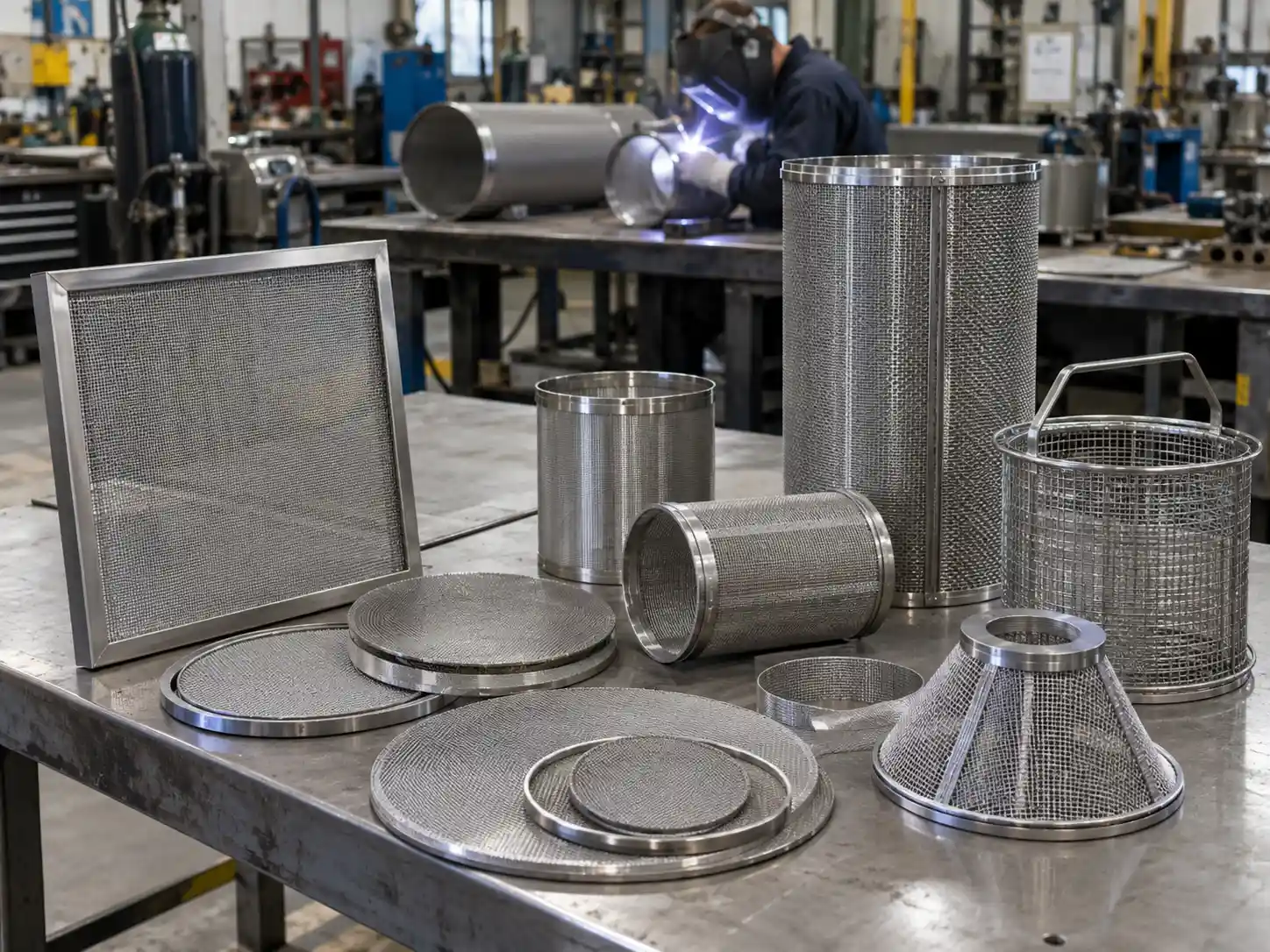

Custom wire mesh filter discs, cylinders, screens, baskets and conical components being fabricated and welded in a metal workshop

Get a Quote

Custom Filter Wire Mesh Fabrication

Wire mesh media can be cut, formed and assembled into finished filtration components according to drawings.

Cutting & Stamping

Mesh can be cut into discs, rings and custom flat filter shapes.

Forming

Wire mesh can be formed into cylindrical, conical, basket and other three-dimensional components.

Framing & Support

Mesh can be combined with metal frames or supporting structures for greater rigidity.

Joining & Assembly

Filter components can be joined and assembled according to finished design requirements.

Filter Wire Mesh vs. Raw Woven Wire Mesh

Both products can use woven mesh, but they represent different stages of supply.

Comparison	Filter Wire Mesh	Woven Wire Mesh
Product Form	Fabricated filter component	Raw mesh material
Supply Form	Disc, element, cylinder, screen, basket	Mainly rolls or cut mesh
Main Selection	Filtration + finished component design	Aperture, wire diameter, weave
Secondary Processing	Usually required	Optional
Installation	Often supplied for direct assembly	Usually processed further
Typical Buyer Need	Finished filter component	Mesh material

Choose Filter Wire Mesh when you need a finished or fabricated filtration component.

Choose Woven Wire Mesh when you need raw mesh material for further processing.

Why Choose Us as Your Filter Wire Mesh Supplier?

We manufacture custom wire mesh filter components with controlled mesh specifications, finished dimensions and fabrication details.

Custom Filter Shapes

Discs, screens, cylinders, baskets and custom components can be produced according to drawings.

Controlled Mesh Media

Aperture, mesh count and wire diameter are checked according to the approved filter specification.

Finished Component Accuracy

Critical dimensions and assembly details can be controlled according to project requirements.

Batch Identification

Different filter sizes and mesh specifications can be identified and packed separately for easier assembly and replacement.

For quotation, send us the mesh specification, filter shape, finished dimensions, quantity and any drawings or tolerance requirements.

Case Study : Custom Cylindrical Wire Mesh Filter Elements for Coolant Filtration

This project required cylindrical stainless steel wire mesh filter elements with controlled dimensions and reinforced end sections for an industrial coolant filtration system.

Project Requirement

An industrial equipment manufacturer required replaceable cylindrical filter elements for a coolant circulation system.

Each element needed a specified mesh opening, finished diameter and length to fit the customer’s existing filter housing.

The customer also required consistent cylindrical shape and reinforced ends for repeated installation and replacement.

Manufacturing Solution

Stainless steel woven wire mesh was selected according to the required filtration specification and operating environment.

The mesh was cut to size, formed into cylindrical sections and joined along the longitudinal seam.

Metal support rings were added at both ends to maintain the required diameter and improve dimensional stability during installation.

Inspection & Packaging

Mesh specification, cylinder diameter, length, seam condition and end-ring dimensions were checked before shipment.

Finished filter elements were individually protected and packed by specification to reduce deformation during transportation.

Filter Wire Mesh FAQs

Filter wire mesh is metal mesh used as filtration media or fabricated into filter components such as discs, screens, cylinders and strainers.

Woven, Dutch weave and fine wire mesh are commonly used depending on the required aperture and filtration performance.

Yes. Mesh specification, outside diameter, inside diameter, shape and quantity can be produced according to suitable requirements.

Yes. Suitable mesh can be formed and assembled into cylindrical and other three-dimensional filter components.

Depending on the design, multiple mesh layers or support structures may be incorporated into a finished filter component.

Stainless steel is widely used because of its corrosion resistance, durability and suitability for many industrial processing environments.

Provide mesh type or filtration requirement, material, aperture or mesh count, filter shape, finished dimensions, quantity and fabrication drawings.
